Stainless Steel Bulkhead Connection - BSP Parallel
Stainless Steel Bulkhead Connection - BSP Parallel
SKU:FIT-2e5596
Durable stainless steel bulkhead connection fitting for light-duty applications. Meets DIN 2353 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection - BSP Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection - BSP Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel offers a durable and reliable solution for light-duty applications. With a nominal operating pressure of 315 bar, this fitting is made of high-quality stainless steel. Its precise dimensions ensure a secure connection, meeting DIN 2353 standards. Ideal for institutional and government procurement needs.

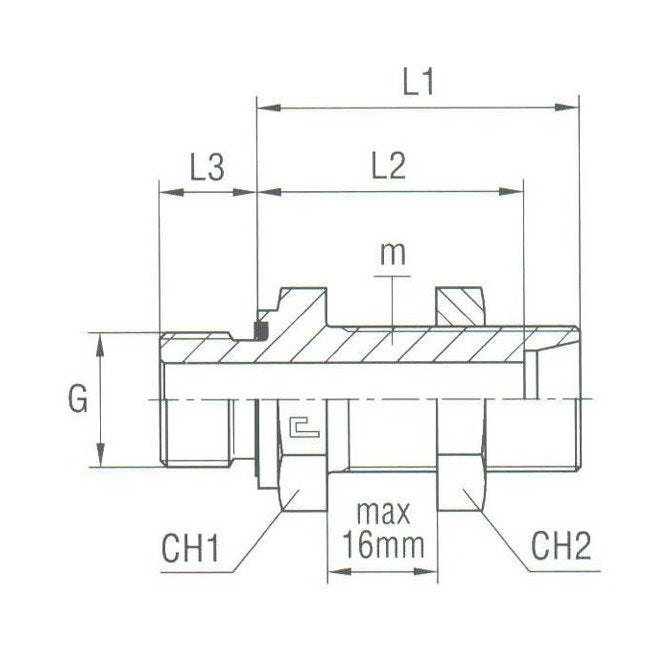

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
30 mm
Specifications G Thread Size
1/2
Specifications L1
48.0 mm
Specifications L2
41.0 mm
Specifications L3
14.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
15.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
