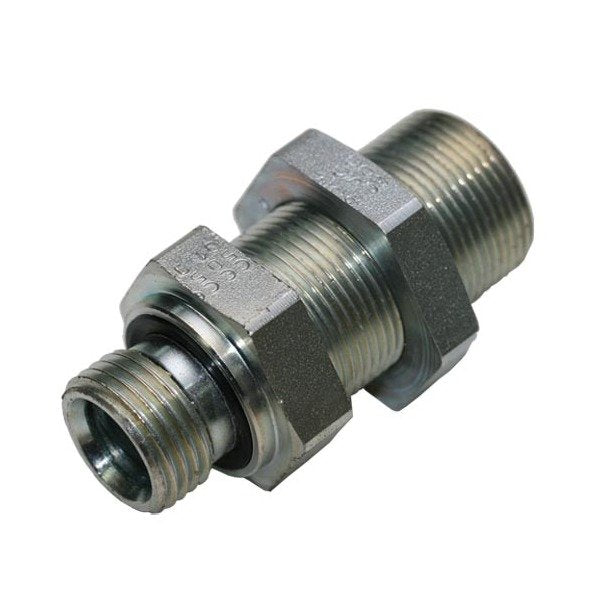

Stainless Steel Bulkhead Connection BSP Parallel
Stainless Steel Bulkhead Connection BSP Parallel
SKU:FIT-6372fd
Highly durable Stainless Steel Bulkhead Connection for heavy-duty applications. Meets DIN 2353 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection BSP Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection BSP Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel is designed for heavy-duty usage with a nominal operating pressure of 630 bar. Made from high-quality stainless steel, this fitting ensures durability and reliability. With a tube diameter of 6.0mm and threads sized at 14x1.5mm and 1/4, it meets DIN 2353 standards, offering precision engineering for secure connections in various applications.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications G Thread Size
1/4
Specifications L1
45.0 mm
Specifications L2
38.0 mm
Specifications L3
12.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
