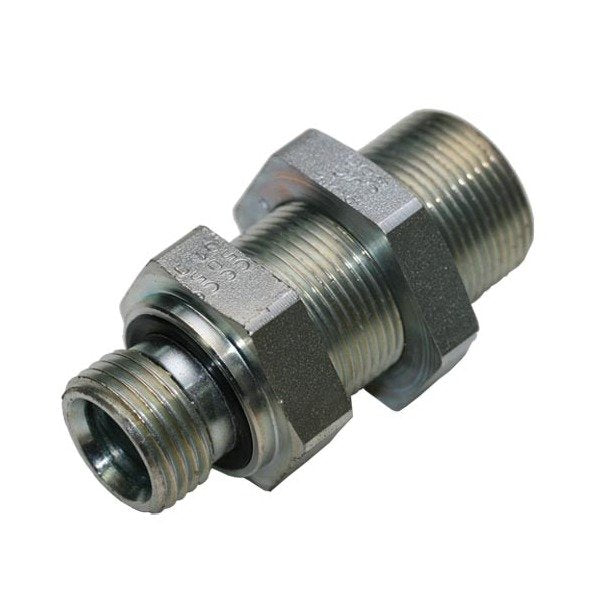

Stainless Steel Bulkhead Connection - BSP Parallel Thread Body
Stainless Steel Bulkhead Connection - BSP Parallel Thread Body
SKU:FIT-67f7f5
Durable Stainless Steel Bulkhead Connection with BSP Parallel Thread for secure and leak-free tube connections in light-duty applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection - BSP Parallel Thread Body
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection - BSP Parallel Thread Body
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel offers a reliable solution for light-duty applications with a nominal operating pressure of 160 bar. Crafted from durable stainless steel, this fitting ensures longevity and corrosion resistance. With precise dimensions meeting DIN 2353 standards, this fitting provides a secure and leak-free connection for tubes with a diameter of 28mm. The inclusion of an elastomer seal enhances the tightness of the connection, adding an extra layer of reliability.
Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
46 mm
Specifications G Thread Size
1
Specifications L1
58.0 mm
Specifications L2
50.5 mm
Specifications L3
18.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
36x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
28 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
