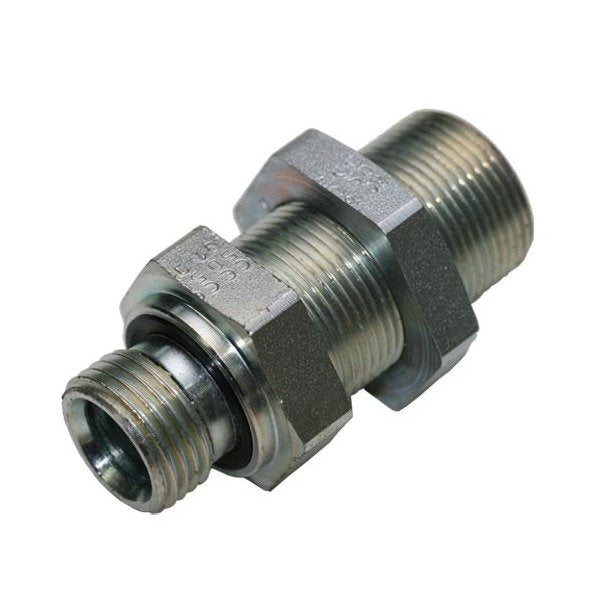

The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel offers a reliable solution for light-duty applications with a nominal operating pressure of 160 bar. Made from high-quality stainless steel, this fitting ensures durability and longevity. Its precise design features a tube diameter of 35.0 mm, thread sizes of 45x2 and 1 1/4, and complies with DIN 2353 standards, making it ideal for institutional and government procurement needs.
Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
55 mm
Specifications G Thread Size
1 1/4
Specifications L1
63.0 mm
Specifications L2
52.5 mm
Specifications L3
20.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
45x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
35.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
