Stainless Steel Bulkhead Connection BSP Parallel with Elastomer Seal
Stainless Steel Bulkhead Connection BSP Parallel with Elastomer Seal
SKU:FIT-617190
Heavy-duty Stainless Steel Bulkhead Connection for high-pressure applications. DIN 2353 compliant with BSP Parallel threads.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection BSP Parallel with Elastomer Seal
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection BSP Parallel with Elastomer Seal
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Connection with Elastomer Seal is a heavy-duty fitting designed to withstand pressure up to 630 bar. Crafted from durable stainless steel, this fitting ensures reliable performance in demanding environments. With precise specifications meeting DIN 2353 standards, it features a tube diameter of 14.0mm and is equipped with a B3 ring for secure connections. The BSP Parallel threads offer a leak-resistant seal, making it ideal for industrial applications.

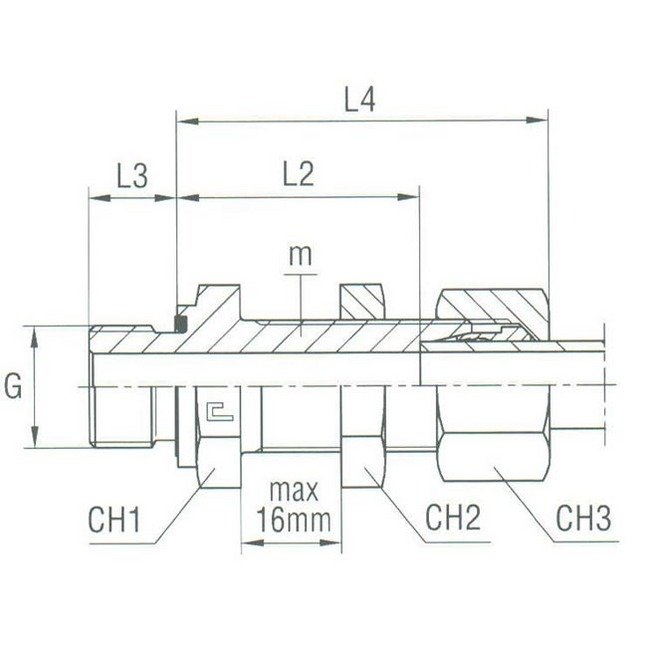

Product Specifications
Specifications Ch1
30 mm
Specifications Ch2
30 mm
Specifications Ch3
27 mm
Specifications G Thread Size
1/2
Specifications L2
46 mm
Specifications L3
14.0 mm
Specifications L4
64 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
14.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
