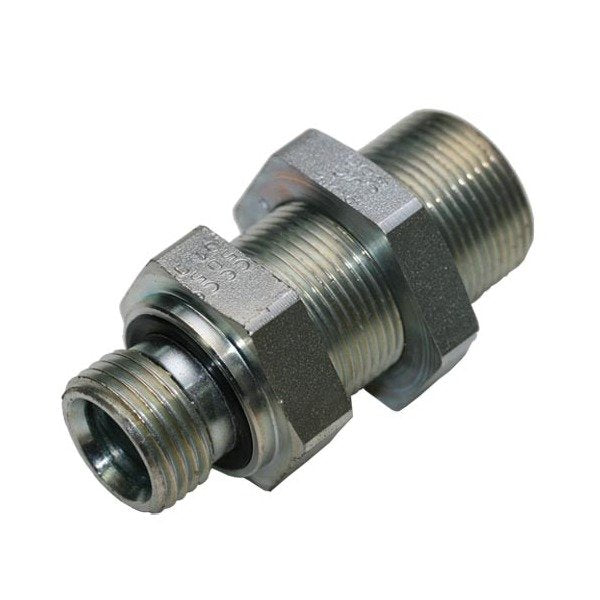

Stainless Steel Bulkhead Connection with Elastomer Seal BSP Parallel

Name: Stainless Steel Bulkhead Connection with Elastomer Seal BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-ac1c44
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-ac1c44

Durable Stainless Steel Bulkhead Fitting with Elastomer Seal for leak-free connections in industrial systems.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Bulkhead Connection with Elastomer Seal BSP Parallel is designed for light-duty applications with a nominal operating pressure of 315 bar. Crafted from high-quality stainless steel, this fitting ensures durability and corrosion resistance. With precise dimensions including a 6.0 mm tube diameter and 12x1.5 thread size, it meets DIN 2353 standards for reliability and performance. The elastomer seal provides a secure and leak-free connection, making it ideal for various industrial and hydraulic systems.

Product Specifications

Specifications Ch1

17.0 mm

Specifications Ch2

17.0 mm

Specifications G Thread Size

1/8

Specifications L1

39.5 mm

Specifications L2

32.5 mm

Specifications L3

8.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

12x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Stainless Steel Bulkhead Connection with Elastomer Seal BSP Parallel
