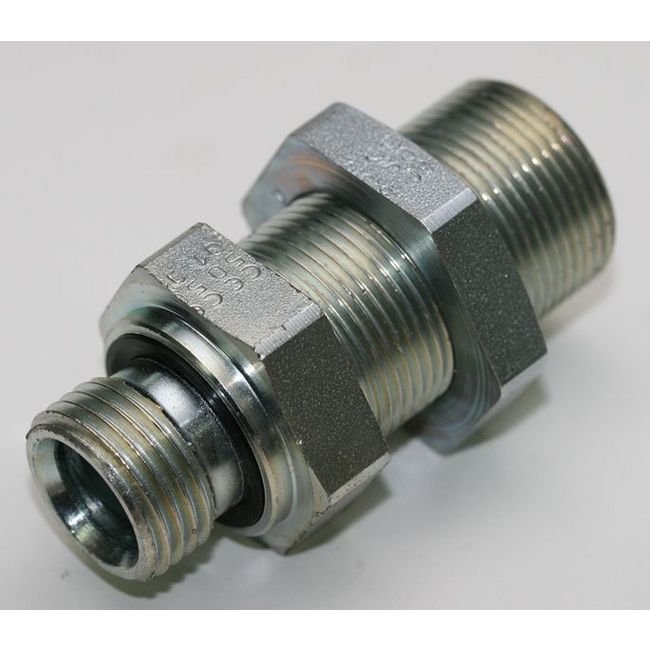

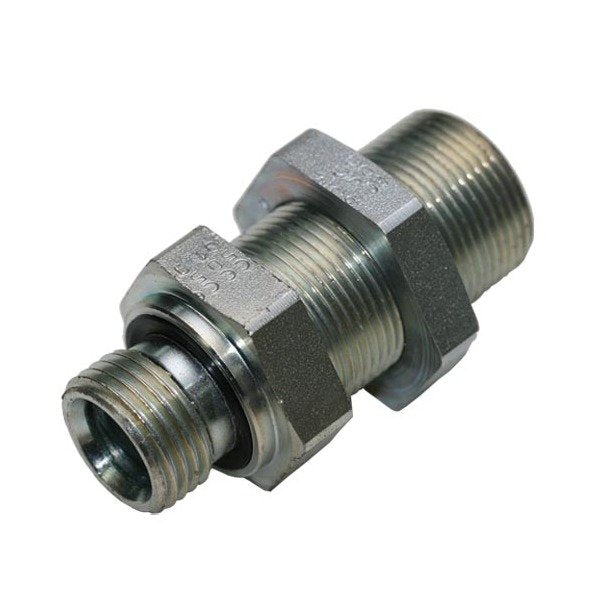

Stainless Steel Bulkhead Connection with Elastomer Seal - BSP Parallel

Name: Stainless Steel Bulkhead Connection with Elastomer Seal - BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-195979
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-195979

Stainless Steel Bulkhead Connection for secure, leak-proof plumbing connections in light-duty applications. DIN 2353 compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

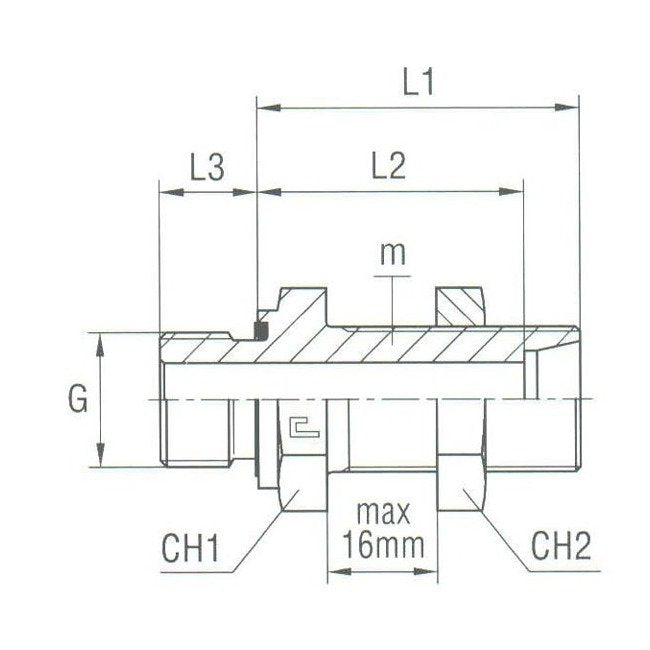

The Stainless Steel Bulkhead Connection provides a reliable seal for light-duty applications with a nominal operating pressure of 315 bar. Built to meet DIN 2353 standards, this fitting features a tube diameter of 8.0mm and precise thread sizes designed for optimal performance. With dimensions L1: 41.0mm, L2: 34.0mm, L3: 12.0mm, CH1: 19.0mm, and CH2: 19.0mm, it ensures a secure connection for various plumbing needs.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

19.0 mm

Specifications G Thread Size

1/4

Specifications L1

41.0 mm

Specifications L2

34.0 mm

Specifications L3

12.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Stainless Steel Bulkhead Connection with Elastomer Seal - BSP Parallel
