Stainless Steel Bulkhead Connection with Elastomer Seal (BSP Parallel)

Name: Stainless Steel Bulkhead Connection with Elastomer Seal (BSP Parallel)
Brand: World Wide Metric, Inc.
SKU: FIT-843c35
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-843c35

High-quality Stainless Steel Bulkhead Connection for heavy-duty applications. DIN 2353 compliant.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

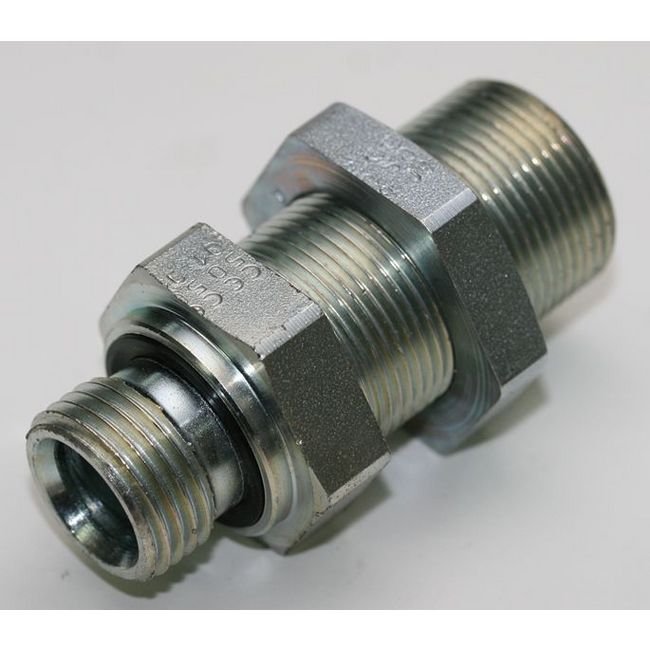

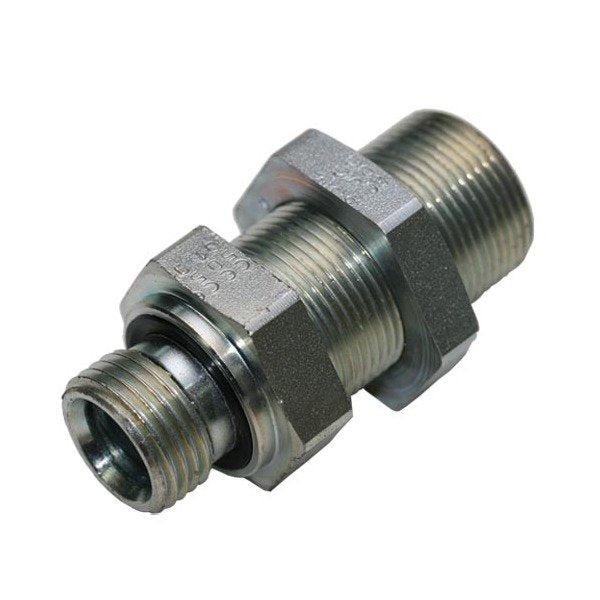

The Stainless Steel Bulkhead Connection with Elastomer Seal is designed for heavy-duty applications, capable of operating at a nominal pressure of 630 bar. Constructed from high-quality stainless steel, this fitting ensures durability and reliability. With a tube diameter of 8.0mm, M - Thread Size of 16x1.5, and G - Thread Size of 1/4, it meets DIN 2353 standards for compression fittings. The Bulkhead Connection features a straight male stud coupling for secure and efficient connections.

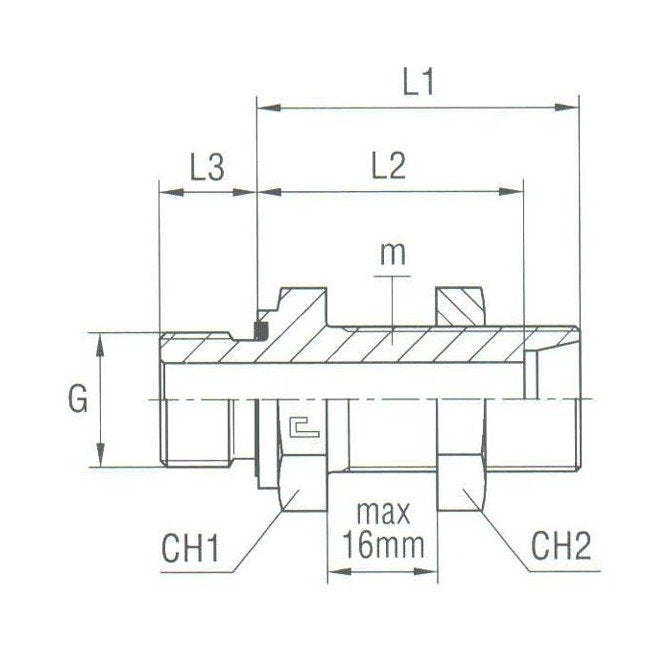

Product Specifications

Specifications Ch1

22 mm

Specifications Ch2

22 mm

Specifications G Thread Size

1/4

Specifications L1

46.0 mm

Specifications L2

39.0 mm

Specifications L3

12.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

16x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel
