Stainless Steel Bulkhead Connection with Elastomer Seal BSP Parallel
Stainless Steel Bulkhead Connection with Elastomer Seal BSP Parallel
SKU:FIT-7f86df
High-quality Stainless Steel Bulkhead Connection with Elastomer Seal for reliable performance in demanding environments.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal BSP Parallel
$34.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal BSP Parallel
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

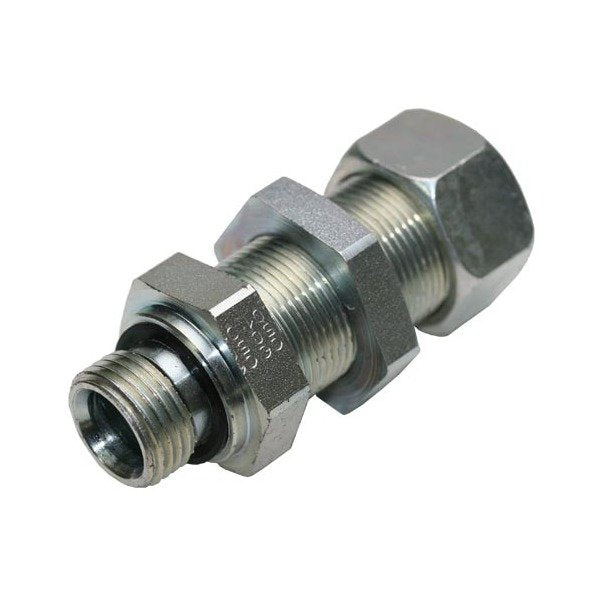

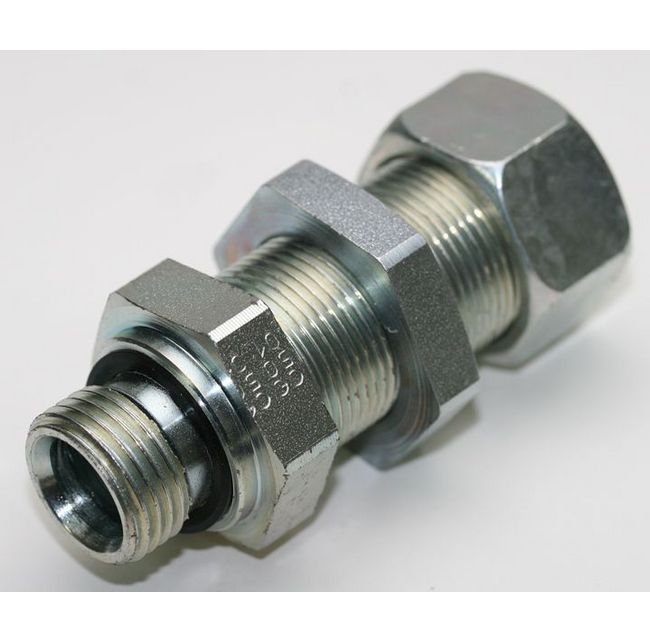

The Stainless Steel Bulkhead Connection with Elastomer Seal BSP Parallel is designed for light duty applications with a nominal operating pressure of 315 bar. Made of high-quality stainless steel, this fitting ensures durability and reliability in demanding environments. With a tube diameter of 12.0 mm and conforming to DIN 2353 standards, it offers a secure and leak-proof connection. The equipped B4 ring enhances sealing performance, making it ideal for industrial and institutional usage.
Product Specifications

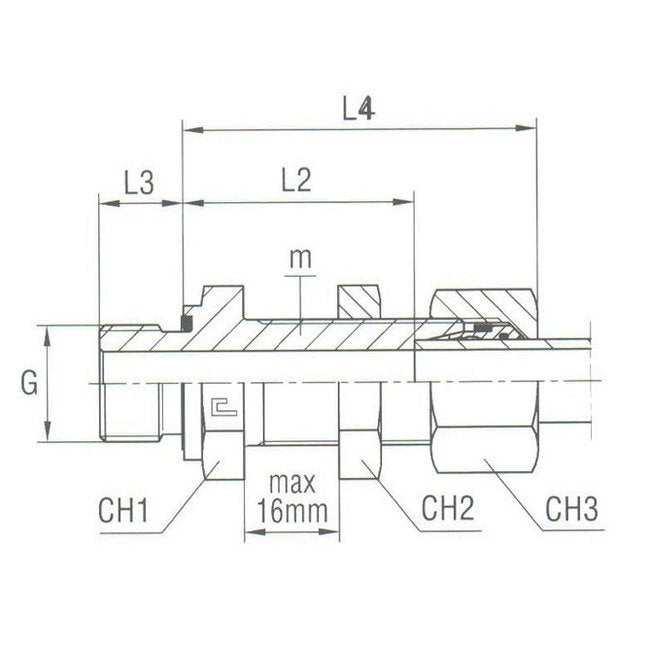

Specifications Ch1
24 mm
Specifications Ch2
24 mm
Specifications Ch3
22 mm
Specifications G Thread Size
3/8
Specifications L2
37.5 mm
Specifications L3
12.0 mm
Specifications L4
52.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
