Stainless Steel Bulkhead Connection with Elastomer Seal BSP Parallel Fitting

Name: Stainless Steel Bulkhead Connection with Elastomer Seal BSP Parallel Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-84b4a3
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-84b4a3

Reliable Stainless Steel Bulkhead Fitting for Institutional Applications

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Bulkhead Connection with Elastomer Seal BSP Parallel Fitting is designed for light-duty applications with a nominal operating pressure of 315 bar. Made of durable stainless steel, this fitting ensures reliability and longevity. With features like a tube diameter of 8.0 mm, various thread sizes, and compliance with DIN 2353 standards, it offers secure and leak-free connections. Perfect for institutional use where precision and quality are paramount.

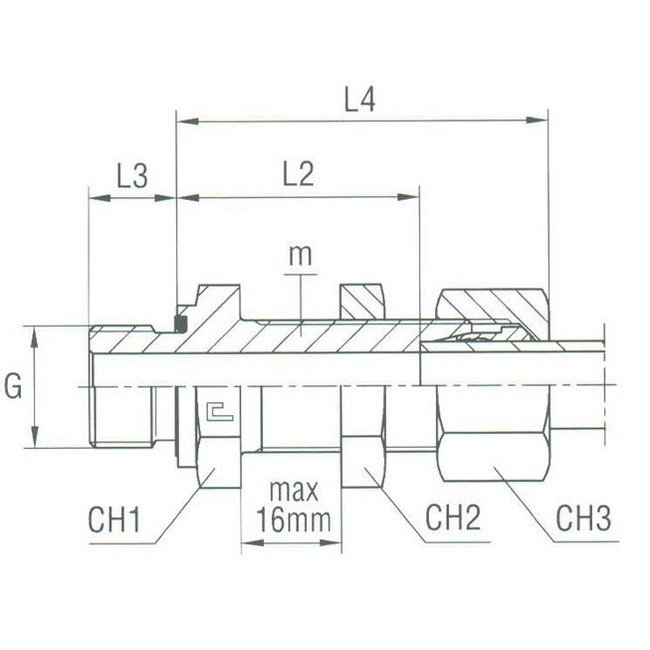

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

19.0 mm

Specifications Ch3

17 mm

Specifications G Thread Size

1/4

Specifications L2

34.0 mm

Specifications L3

12.0 mm

Specifications L4

49 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Stainless Steel Bulkhead Connection with Elastomer Seal BSP Parallel Fitting
