Stainless Steel Bulkhead Connection with Elastomer Seal - BSP Parallel Thread
Stainless Steel Bulkhead Connection with Elastomer Seal - BSP Parallel Thread
SKU:FIT-8c5fa7
High-quality Stainless Steel Bulkhead Connection with Elastomer Seal for secure and reliable installation in light-duty applications. Conforms to DIN 2353 standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal - BSP Parallel Thread
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal - BSP Parallel Thread
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Connection features a durable elastomer seal, designed for light-duty applications with a nominal operating pressure of 160 bar. Crafted from high-quality stainless steel, it offers a secure fit for tube diameters of 42.0 mm. Meeting DIN 2353 standards, this fitting ensures reliability and ease of installation.

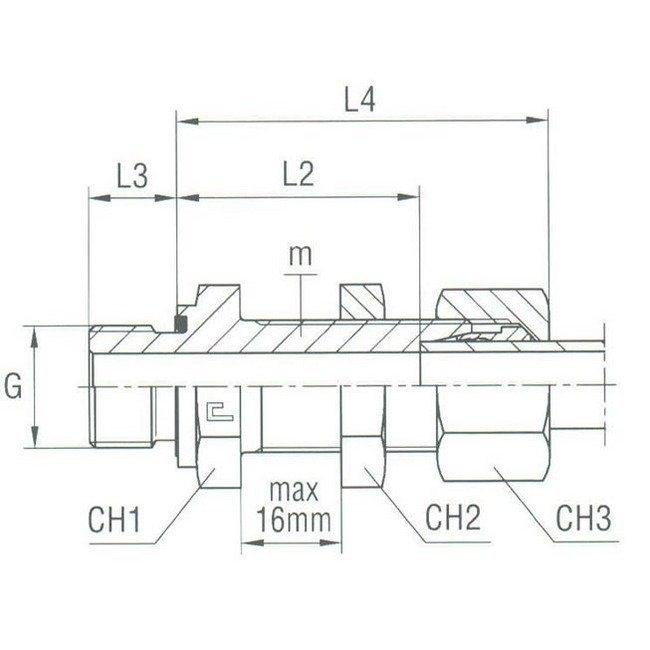

Product Specifications
Specifications Ch1
60 mm
Specifications Ch2
65 mm
Specifications Ch3
60 mm
Specifications G Thread Size
1 1/2
Specifications L2
53 mm
Specifications L3
22.0 mm
Specifications L4
76 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
