Stainless Steel Bulkhead Connection with Elastomer Seal BSP Thread - Body Only
Stainless Steel Bulkhead Connection with Elastomer Seal BSP Thread - Body Only
SKU:FIT-9ed5cb
High-quality Stainless Steel Bulkhead Connection for secure and leak-proof sealing in fluid systems.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal BSP Thread - Body Only
$34.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal BSP Thread - Body Only
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

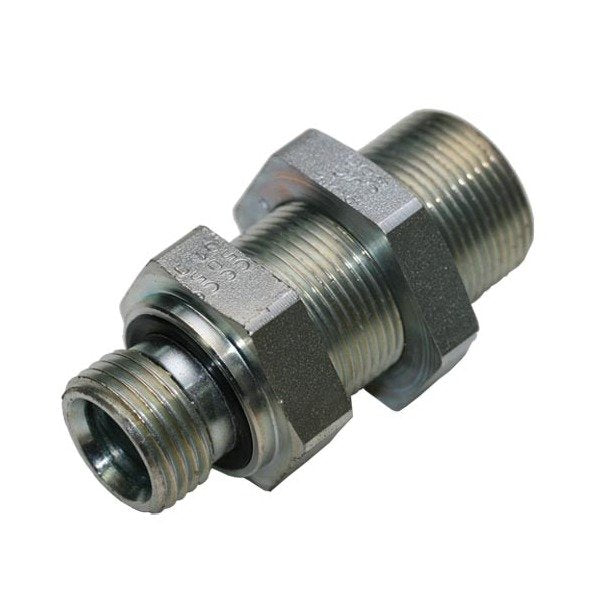

The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Body Only is designed for light-duty applications, with a nominal operating pressure of 315 bar. Constructed from high-quality stainless steel, this fitting ensures durability and reliability. With a tube diameter of 18.0 mm and DIN 2353 compliance, it meets industry standards for precision engineering and performance. The inclusion of an elastomer seal provides leak-proof sealing for secure connections in various fluid systems.
Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
36 mm
Specifications G Thread Size
1/2
Specifications L1
52.0 mm
Specifications L2
44.5 mm
Specifications L3
14.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
26x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
18.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
