Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
SKU:FIT-4921e2
Reliable Stainless Steel Bulkhead Connection for light-duty applications, ensuring precision with DIN 2353 compliance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel is designed for light-duty applications with a nominal operating pressure of 315 bar. Made of durable stainless steel, this fitting ensures reliable performance. With a tube diameter of 12.0 mm, thread sizes of 18x1.5 and 3/8, and compliant with DIN 2353 standards, it offers precision and quality for industrial use.

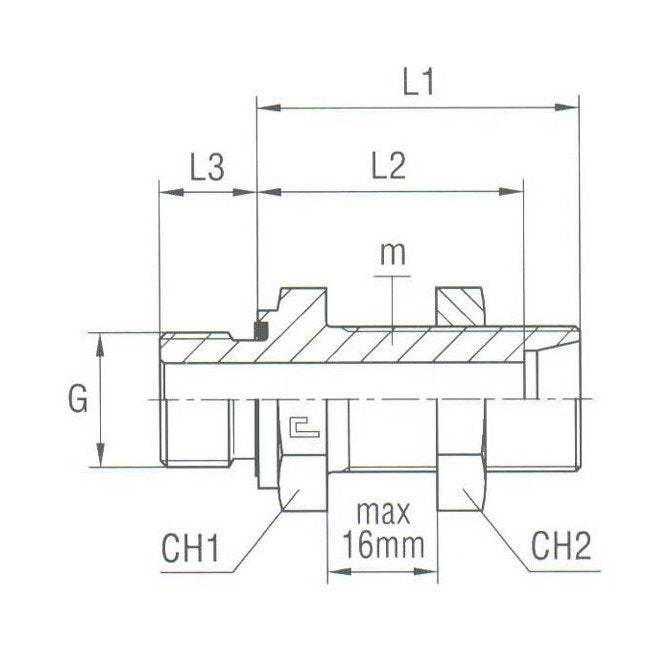

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
24 mm
Specifications G Thread Size
3/8
Specifications L1
44.5 mm
Specifications L2
37.5 mm
Specifications L3
12.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
