Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
SKU:FIT-add466
Durable Stainless Steel Bulkhead Connection for light-duty applications, meets DIN 2353 standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

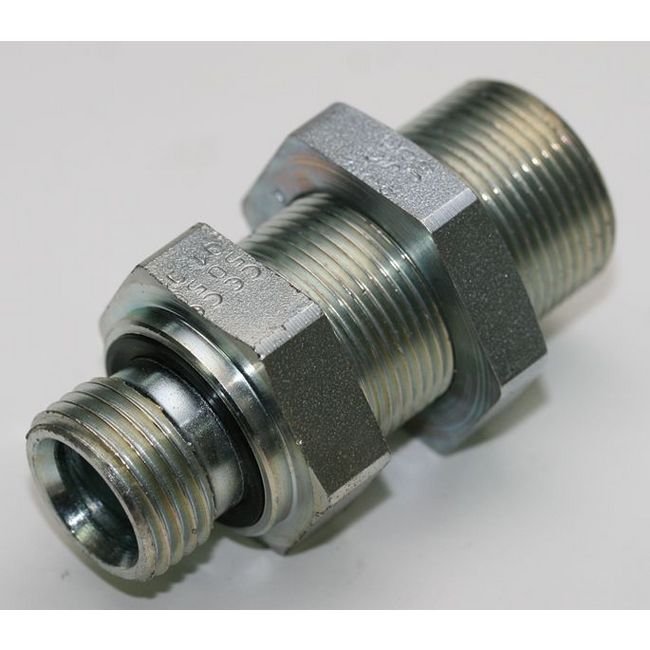

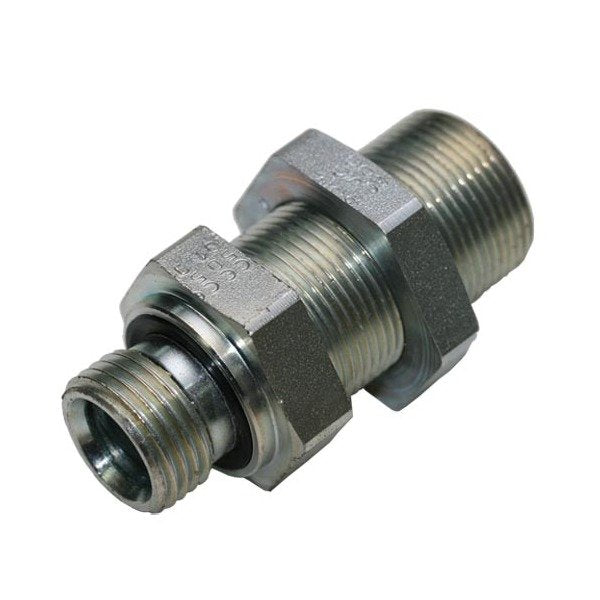

The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel is designed for light-duty applications with a nominal operating pressure of 160 bar. Crafted from high-quality stainless steel, this fitting ensures durability and corrosion resistance. With precise dimensions including a Tube Diameter of 42.0 mm and G - Thread Size of 1 1/2, it meets DIN 2353 standards for reliable performance. Install with ease and confidence, knowing that this fitting is engineered for efficiency and longevity.

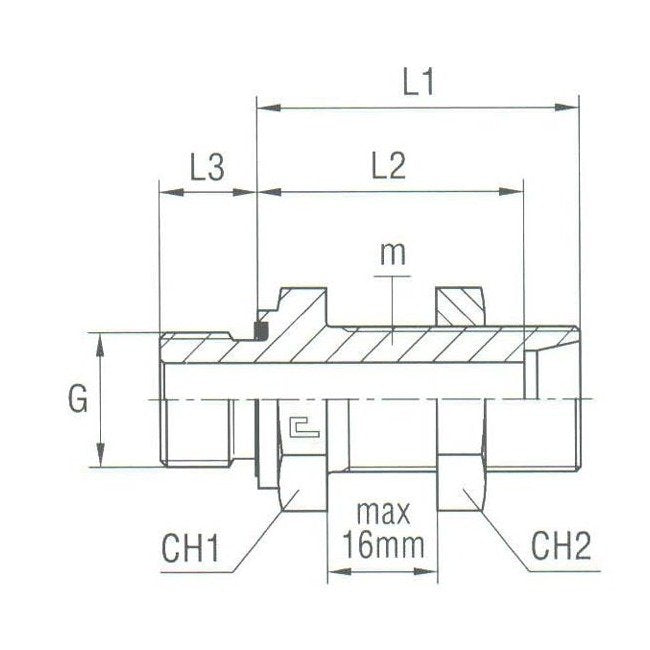

Product Specifications
Specifications Ch1
60 mm
Specifications Ch2
65 mm
Specifications G Thread Size
1 1/2
Specifications L1
64.0 mm
Specifications L2
53 mm
Specifications L3
22.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
