Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
SKU:FIT-34aa48
High-pressure stainless steel bulkhead connection for secure sealing in heavy-duty applications. DIN 2353 compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Equipped B3 Ring is designed for heavy-duty applications with a nominal operating pressure of 315 bar. Constructed from high-quality stainless steel, this fitting ensures durability and corrosion resistance. With precise dimensions and adherence to DIN 2353 standards, it offers reliable performance in demanding environments. The elastomer seal enhances sealing efficiency, while the male stud coupling design facilitates secure connections. Ideal for institutional and government use.

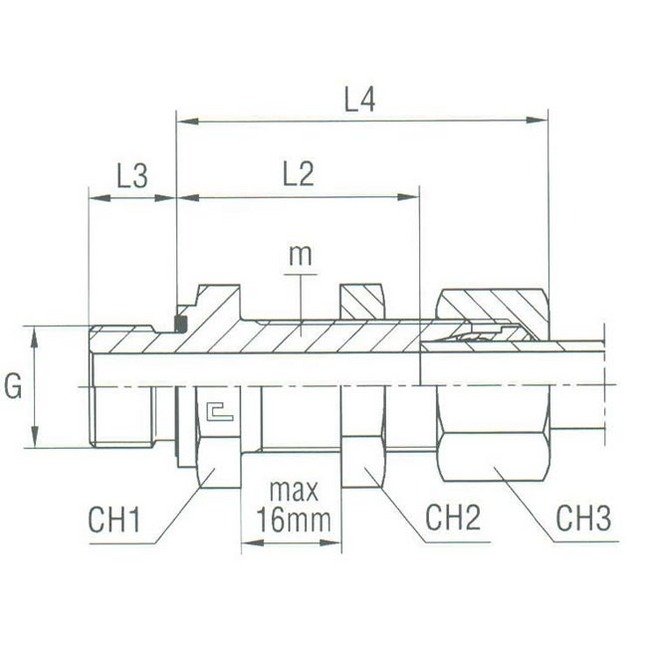

Product Specifications
Specifications Ch1
60 mm
Specifications Ch2
65 mm
Specifications Ch3
60 mm
Specifications G Thread Size
1 1/2
Specifications L2
56 mm
Specifications L3
22.0 mm
Specifications L4
87 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
38.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
