Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
SKU:FIT-07175a
High-quality stainless steel fitting for light-duty applications with BSP parallel threads. Compliant with DIN 2353 standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$34.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel is designed for light-duty applications with a nominal operating pressure of 315 bar. Constructed from high-quality stainless steel, this fitting ensures durability and reliability. With a tube diameter of 15.0 mm and compliant with DIN 2353 standards, it offers precise and secure connections. The Equipped B3 Ring enhances sealing performance, making it ideal for various industrial settings.

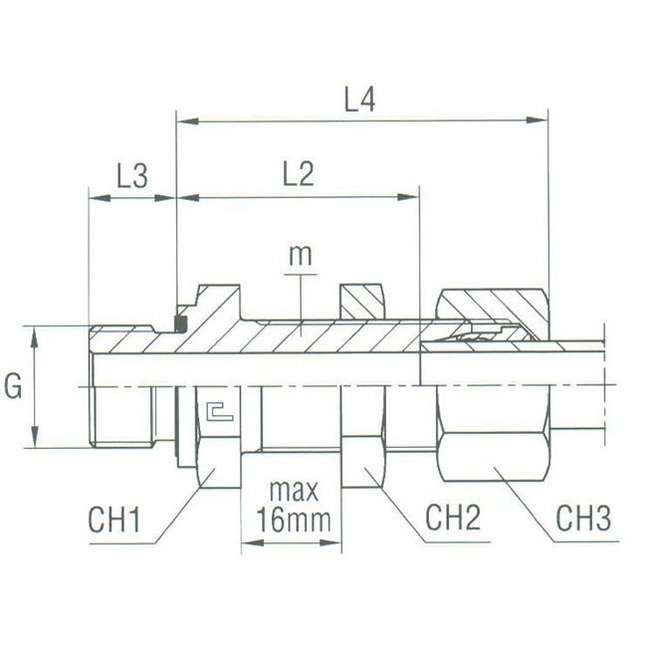

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
30 mm
Specifications Ch3
27 mm
Specifications G Thread Size
1/2
Specifications L2
41.0 mm
Specifications L3
14.0 mm
Specifications L4
56 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
15.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
