Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
SKU:FIT-72ee09
Premium stainless steel bulkhead fitting with elastomer seal for heavy-duty applications. DIN 2353 compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

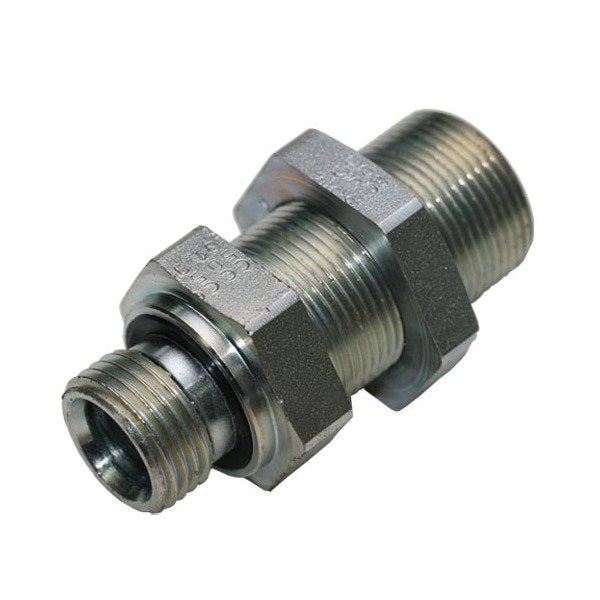

The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Body Only is designed for heavy-duty applications, with a nominal operating pressure of 630 bar. Crafted from high-quality stainless steel, this fitting ensures durability and reliability. Featuring a tube diameter of 14.0 mm, precise thread sizes, and compliance with DIN 2353 standards, this fitting is ideal for industrial settings requiring secure connections and leak-free performance. The incorporation of an elastomer seal enhances sealing properties, making it suitable for a wide range of fluid systems. Upgrade to this premium bulkhead connection for industrial-grade performance.
Product Specifications
Specifications Ch1
30 mm
Specifications Ch2
30 mm
Specifications G Thread Size
1/2
Specifications L1
54.0 mm
Specifications L2
46 mm
Specifications L3
14.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
14.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
