Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
SKU:FIT-51e52c
Durable stainless steel Bulkhead Connection with BSP Parallel thread, ideal for light-duty applications. Compliant with DIN 2353 standards.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$32.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

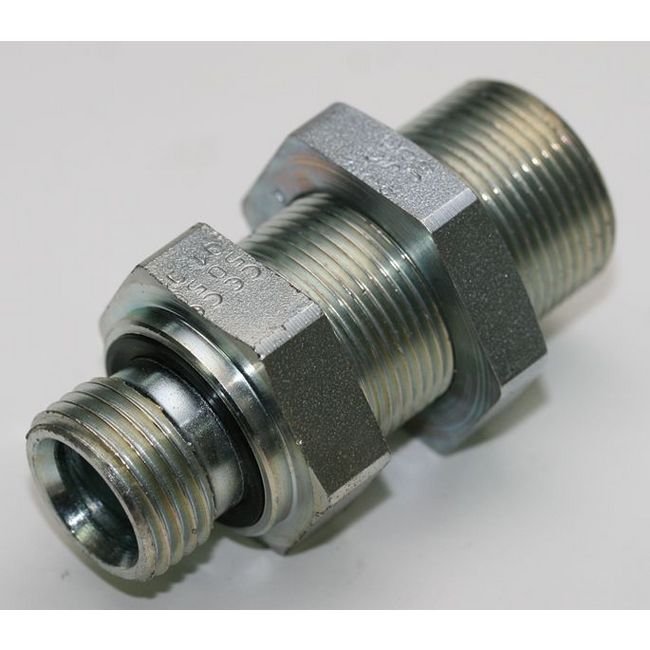

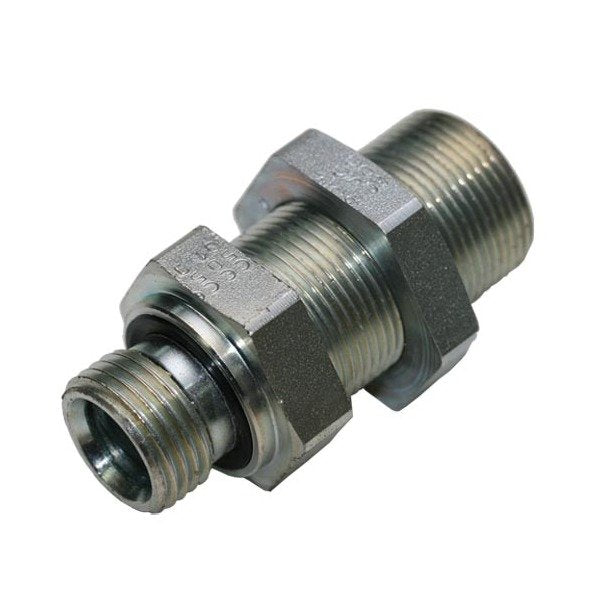

The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel is designed for light-duty applications with a nominal operating pressure of 315 bar. Crafted from durable stainless steel, this fitting ensures long-lasting performance. With a tube diameter of 10.0 mm and compliance with DIN 2353 standards, it offers a secure and reliable connection. Its precision engineering includes an M-thread size of 16x1.5, G-thread size of 1/4, and specific dimensions to fit various setups seamlessly.

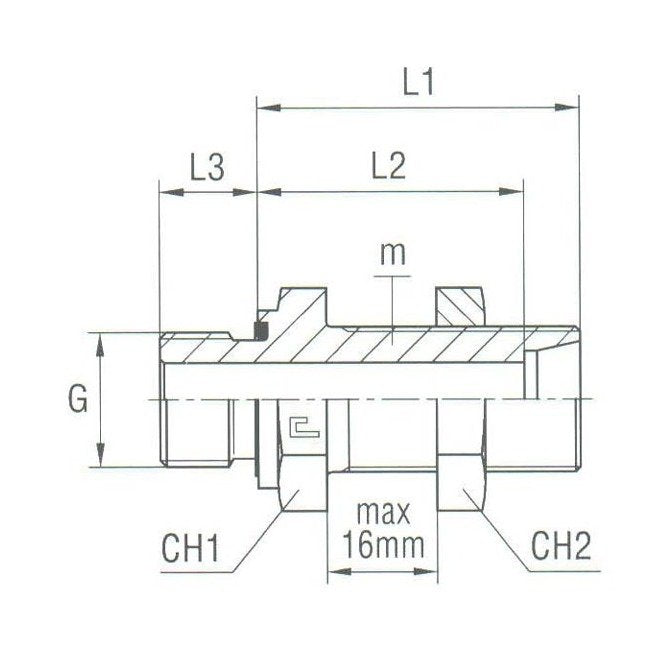

Product Specifications
Specifications Ch1
22 mm
Specifications Ch2
22 mm
Specifications G Thread Size
1/4
Specifications L1
43.0 mm
Specifications L2
36.0 mm
Specifications L3
12.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
16x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
