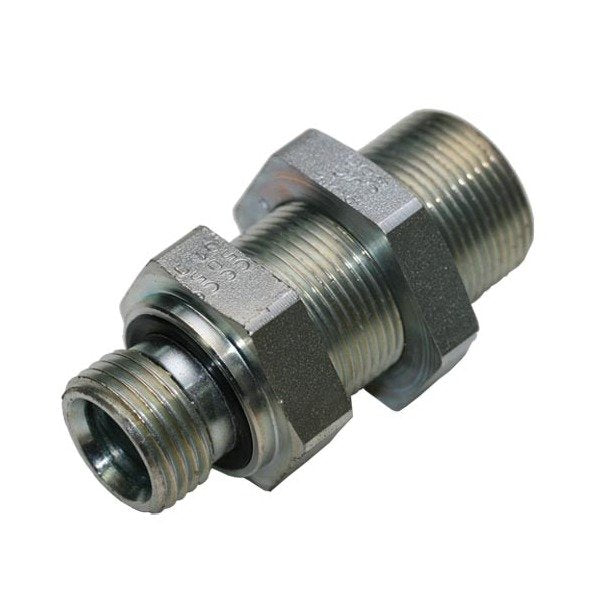

Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
SKU:FIT-a4863c
Premium Stainless Steel Bulkhead Connection with Elastomer Seal for secure and reliable installations in light-duty applications. DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Connection with Elastomer Seal is designed for light-duty applications with a nominal operating pressure of 160 bar. Made from high-quality stainless steel, this fitting ensures durability and reliability. With precise dimensions and meeting DIN 2353 standards, it guarantees secure connections. Ideal for tube diameters of 22 mm, it features a convenient 30x2 m thread size and a 3/4 G thread size for easy installation. Trust in this fitting's robust construction and leak-resistant elastomer seal for dependable performance in demanding environments.
Product Specifications
Specifications Ch1
36 mm
Specifications Ch2
41 mm
Specifications G Thread Size
3/4
Specifications L1
55.0 mm
Specifications L2
47.5 mm
Specifications L3
16.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
30x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
