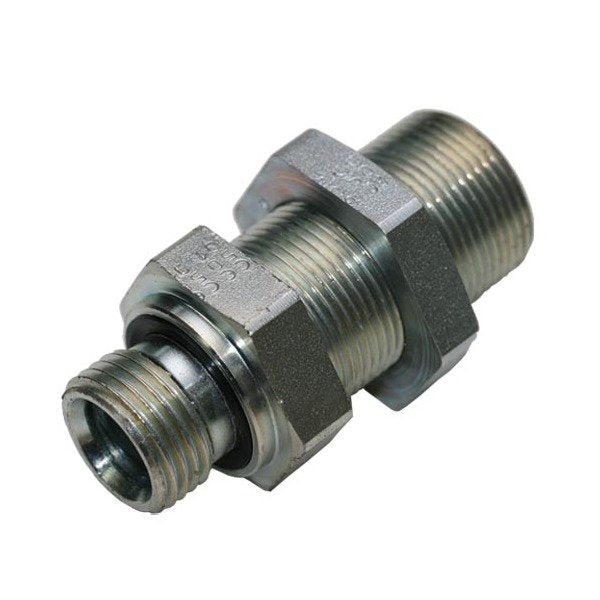

Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
SKU:FIT-4538f1
High-pressure stainless steel bulkhead fitting for secure tube connections. DIN 2353 compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$34.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel offers heavy-duty performance with a nominal operating pressure of 400 bar. Crafted from durable stainless steel, this fitting ensures reliable tube connections with precise dimensions. Compliant with DIN 2353 standards, it guarantees exceptional quality and longevity for industrial applications.
Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
41 mm
Specifications G Thread Size
3/4
Specifications L1
59.0 mm
Specifications L2
48.5 mm
Specifications L3
16.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
30x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
20.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
