Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
SKU:FIT-9c1f6b
High-performance Stainless Steel Bulkhead Connection for secure and leak-proof sealing in industrial applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$59.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

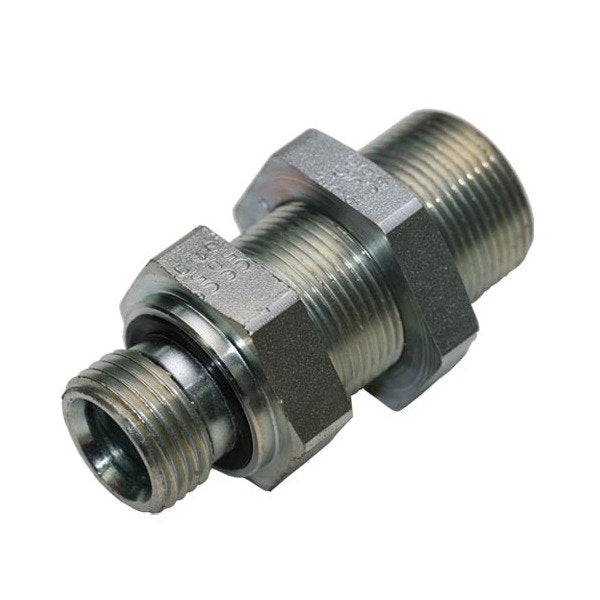

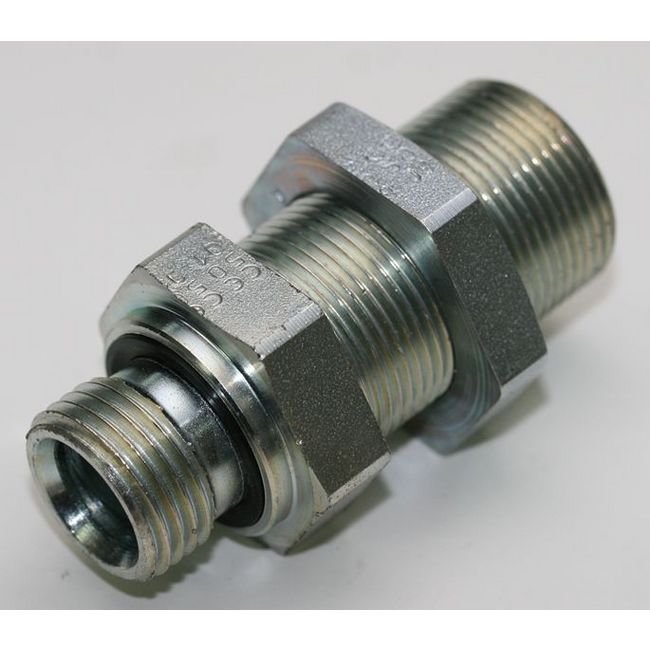

The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel offers heavy-duty performance with a nominal operating pressure of 630 bar. Constructed from high-quality stainless steel, this fitting ensures durability and reliability. With a Tube Diameter of 12.0 mm and meeting DIN 2353 standards, it provides a secure and leak-proof connection. The Body Only design makes it versatile for various applications.

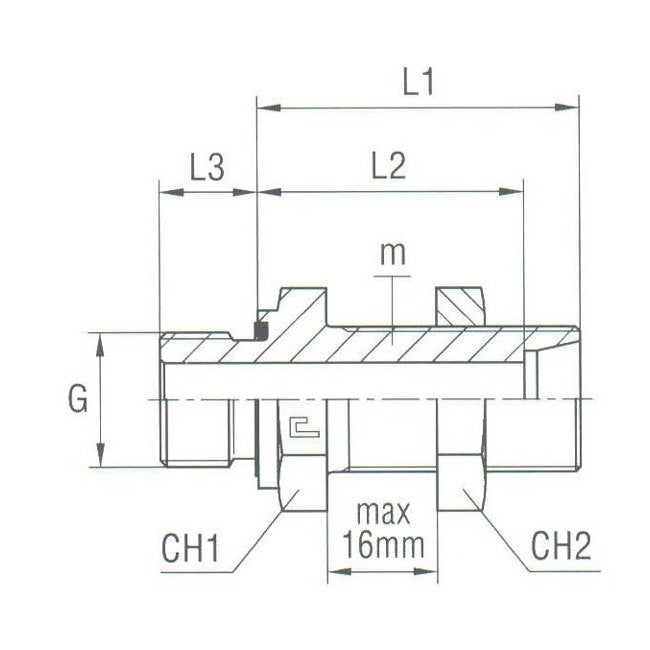

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
27 mm
Specifications G Thread Size
3/8
Specifications L1
50.0 mm
Specifications L2
42.5 mm
Specifications L3
12.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
20x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
