Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
SKU:FIT-1a9508
High-quality Stainless Steel Bulkhead Connection for Light Duty applications, 315 bar pressure, DIN 2353 compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$34.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Equipped B3 Ring is designed for Light Duty applications with a Nominal Operating Pressure of 315 bar. Crafted from durable Stainless Steel, this fitting ensures reliable performance. With tube diameter of 12.0 mm and conforming to DIN 2353 standards, it guarantees precision and quality. The male stud coupling, straight design, and elastomer seal enhance efficiency and durability.

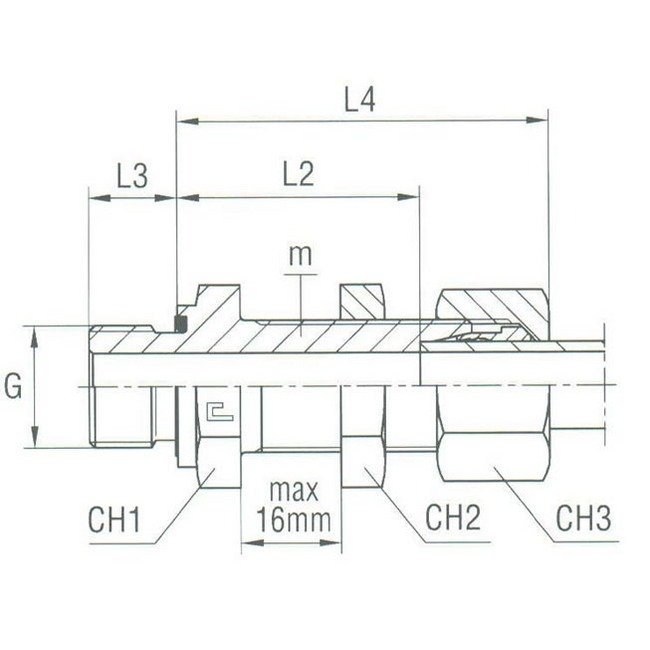

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
24 mm
Specifications Ch3
22 mm
Specifications G Thread Size
3/8
Specifications L2
37.5 mm
Specifications L3
12.0 mm
Specifications L4
52.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
