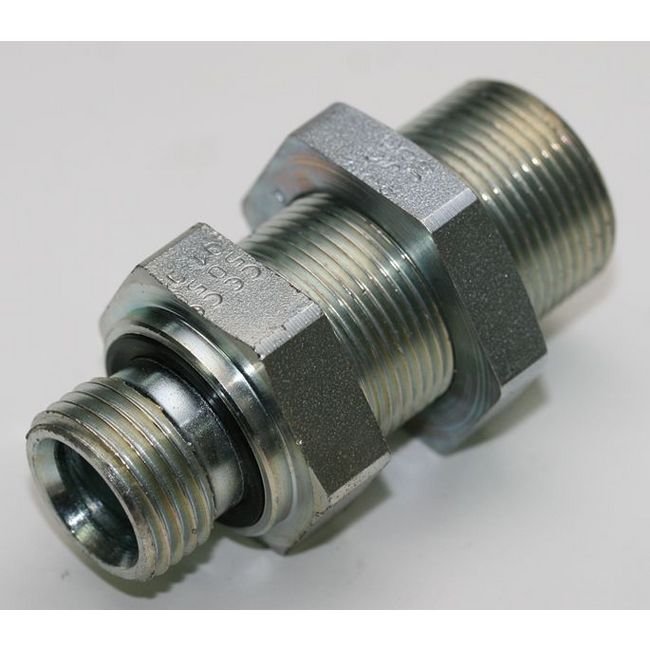

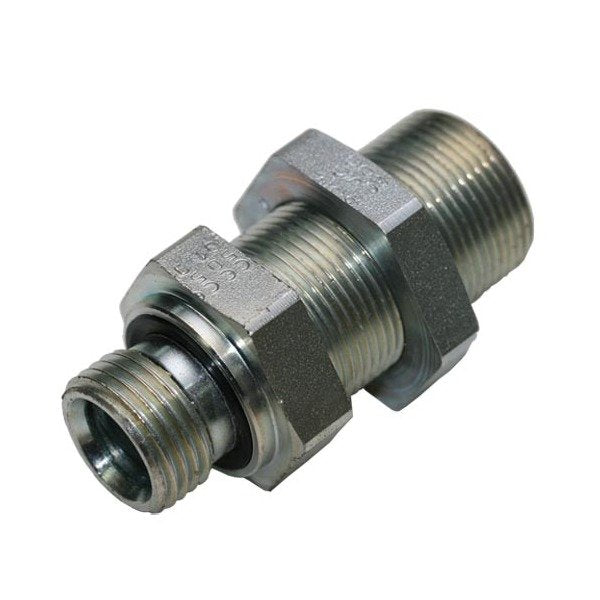

Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel Body
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel Body
SKU:FIT-df3ea3
Premium stainless steel bulkhead connection for high-pressure applications, meets DIN 2353 standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel Body
$34.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel Body
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

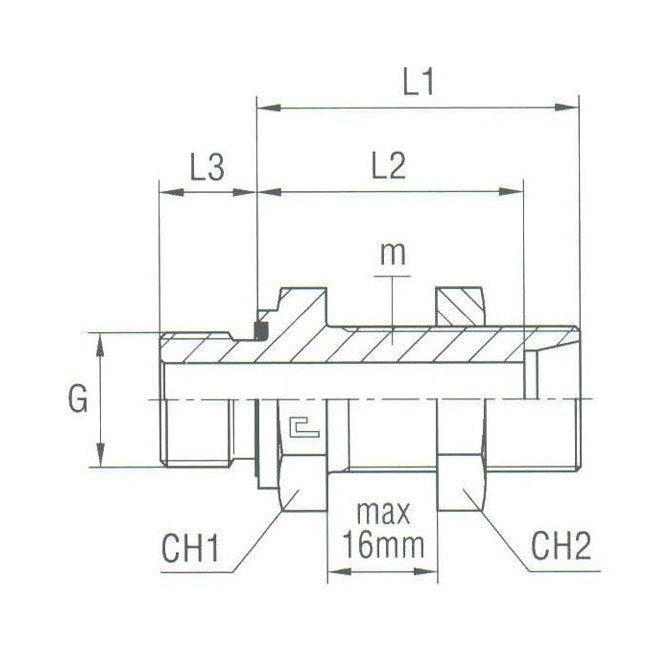

The Stainless Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel Body offers heavy-duty performance with a nominal operating pressure of 630 bar. Constructed from durable stainless steel, it features a tube diameter of 10.0 mm and meets DIN 2353 standards. With precise measurements including thread sizes of 18x1.5 and 3/8, this fitting ensures a secure and leak-free connection. Its compact design with dimensions of L1: 49.0 mm, L2: 41.5 mm, and L3: 12.0 mm, along with CH1: 24 mm and CH2: 24 mm, makes it ideal for various applications.
Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
24 mm
Specifications G Thread Size
3/8
Specifications L1
49.0 mm
Specifications L2
41.5 mm
Specifications L3
12.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
