Stainless Steel Bulkhead Elbow, 28mm, DIN 2353 Compression Fitting
Stainless Steel Bulkhead Elbow, 28mm, DIN 2353 Compression Fitting
SKU:FIT-88f0c5
Durable Stainless Steel Bulkhead Elbow for light-duty applications, DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow, 28mm, DIN 2353 Compression Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow, 28mm, DIN 2353 Compression Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

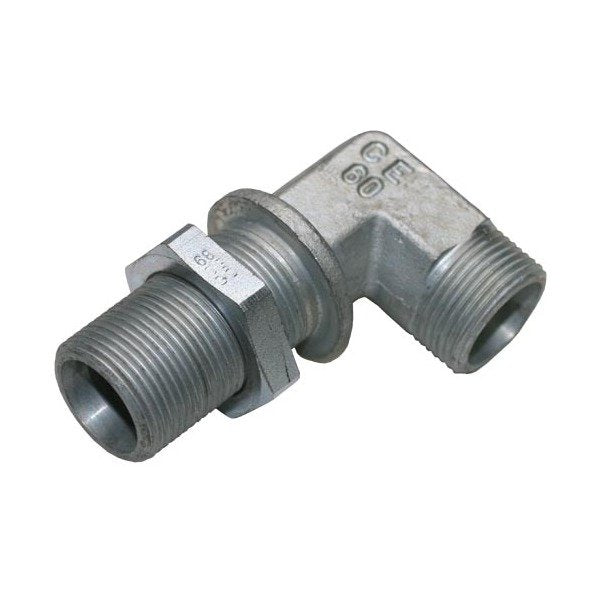

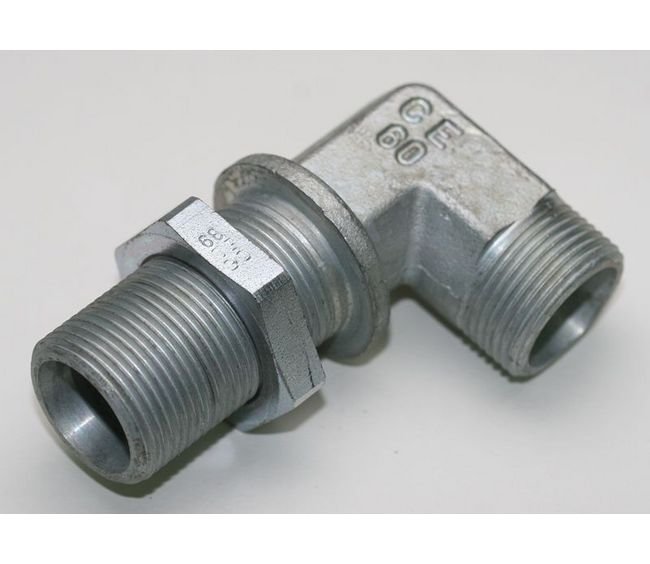

The Stainless Steel Bulkhead Elbow - Body Only is designed for light-duty applications, crafted from durable stainless steel to ensure longevity and reliability. With a tube diameter of 28mm and a nominal operating pressure of 160 bar, this fitting meets DIN 2353 standards for quality and performance. The precise measurements and robust construction make it ideal for demanding industrial environments where safety and efficiency are paramount.

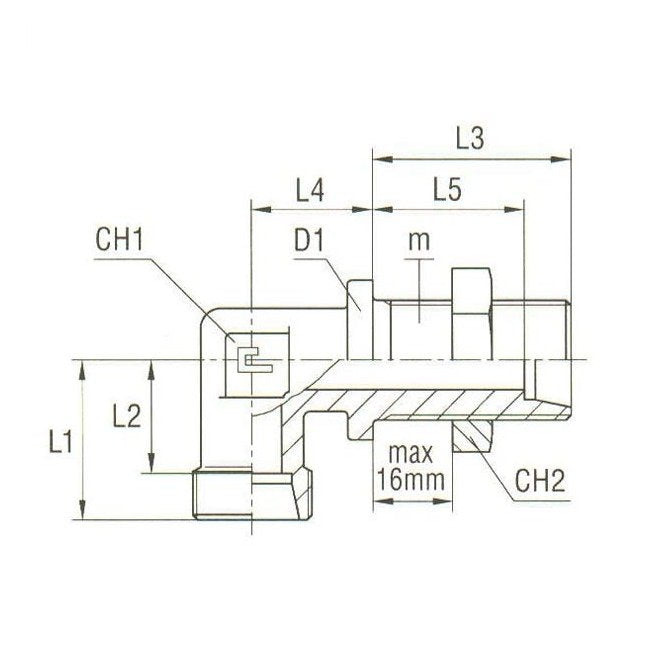

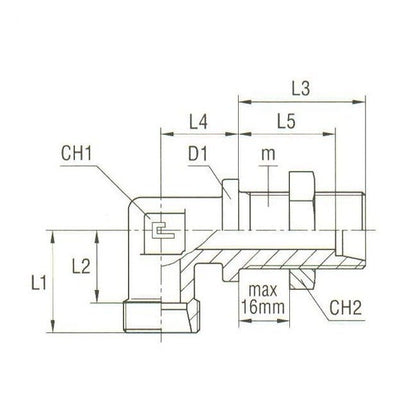

Product Specifications
Specifications Ch1
36 mm
Specifications Ch2
46 mm
Specifications D1
42 mm
Specifications L1
38.0 mm
Specifications L2
30.5 mm
Specifications L3
43 mm
Specifications L4
34 mm
Specifications L5
35.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
36x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
28 mm
