Stainless Steel Bulkhead Elbow B4 Ring - DIN 2353 Compression Fitting
Stainless Steel Bulkhead Elbow B4 Ring - DIN 2353 Compression Fitting
SKU:FIT-7b4933
Heavy-duty Stainless Steel Bulkhead Elbow with B4 Ring, DIN 2353 compliant, for secure high-pressure connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow B4 Ring - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow B4 Ring - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Elbow with B4 Ring is a heavy-duty fitting designed for superior performance in institutional and industrial applications. Crafted from high-quality stainless steel, it ensures durability and reliability under high pressure situations. With a tube diameter of 12.0mm and a nominal operating pressure of 630 bar, this fitting guarantees secure connections and leak-free performance. Compliant with DIN 2353 standards, it meets the stringent requirements of government and institutional procurement.

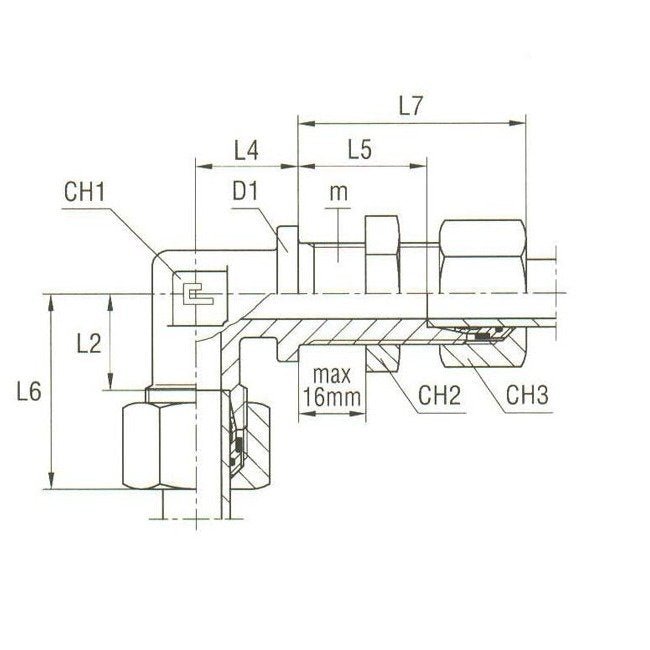

Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
27 mm
Specifications Ch3
24 mm
Specifications D1
27 mm
Specifications L2
21.5 mm
Specifications L4
21 mm
Specifications L5
30.5 mm
Specifications L6
29 mm
Specifications L7
47 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
20x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
