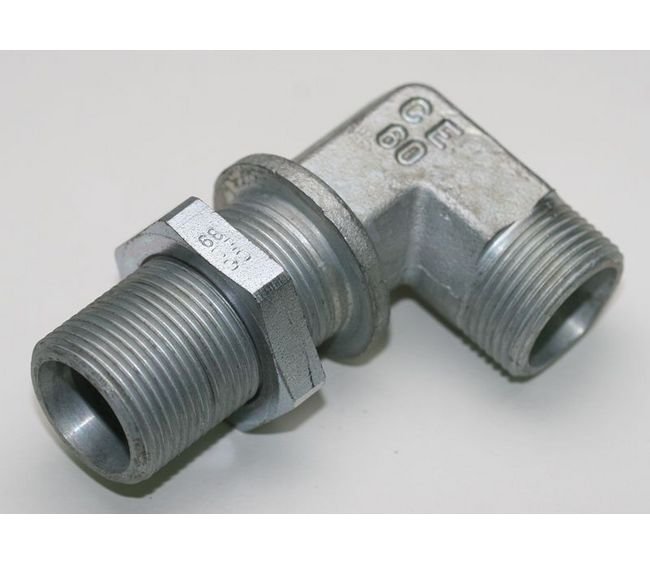

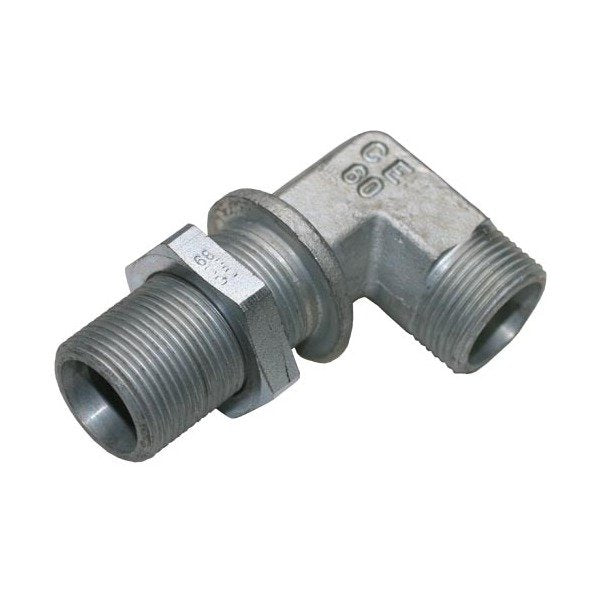

Stainless Steel Bulkhead Elbow Body
Stainless Steel Bulkhead Elbow Body
SKU:FIT-f9d000
High-quality stainless steel bulkhead elbow for light-duty applications. DIN 2353 compliant. Secure and durable fittings.
Regular price
$28.99
Regular price
Sale price
$28.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow Body
$28.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow Body
$28.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Elbow Body is designed for light-duty applications, constructed with high-quality stainless steel to ensure durability and longevity. With a Tube Diameter of 12.0 mm and a Pressure Rating of 315 bar, this fitting guarantees reliable performance. Meeting DIN 2353 standards, it's ideal for industrial settings requiring precision fittings that ensure a secure connection. Invest in quality and reliability with this stainless steel bulkhead elbow body.

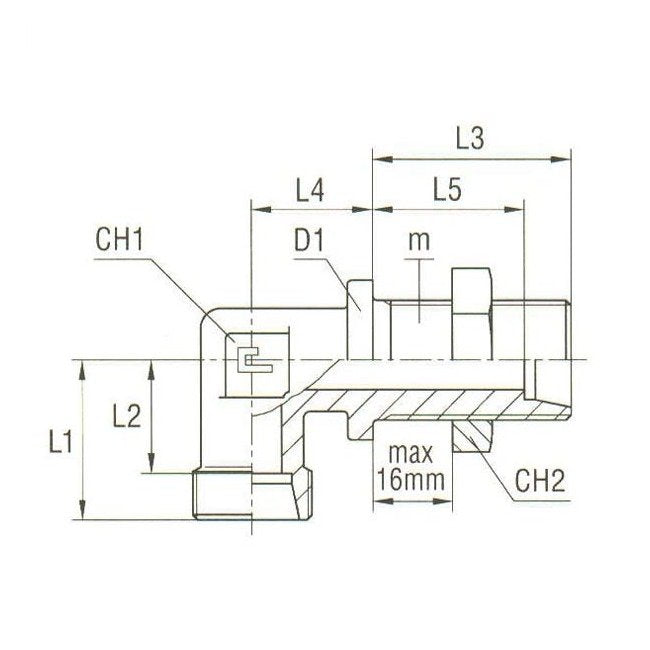

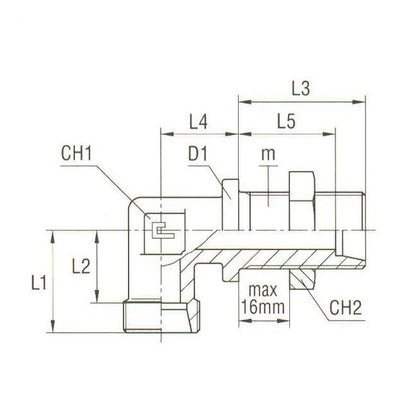

Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
24 mm
Specifications D1
24 mm
Specifications L1
24.0 mm
Specifications L2
17.0 mm
Specifications L3
36.0 mm
Specifications L4
20 mm
Specifications L5
29 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
