Stainless Steel Bulkhead Elbow Body - DIN 2353 Compression Fitting
Stainless Steel Bulkhead Elbow Body - DIN 2353 Compression Fitting
SKU:FIT-cffab9
Heavy-duty Stainless Steel Bulkhead Elbow Body, DIN 2353 compliant - Ideal for high-pressure applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow Body - DIN 2353 Compression Fitting
$34.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow Body - DIN 2353 Compression Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

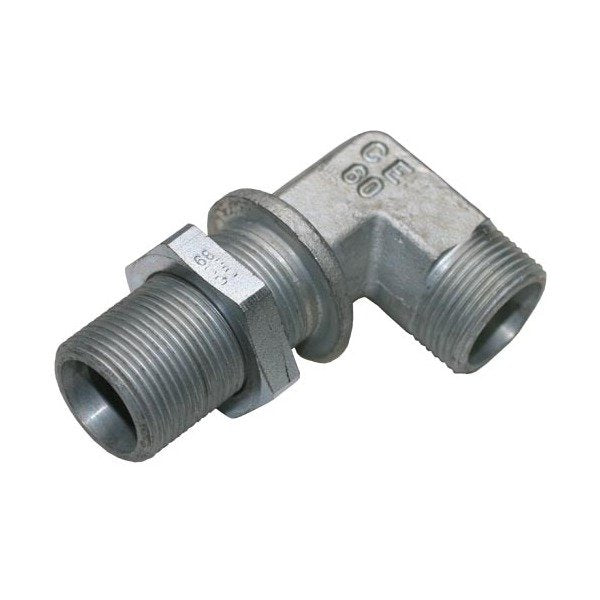

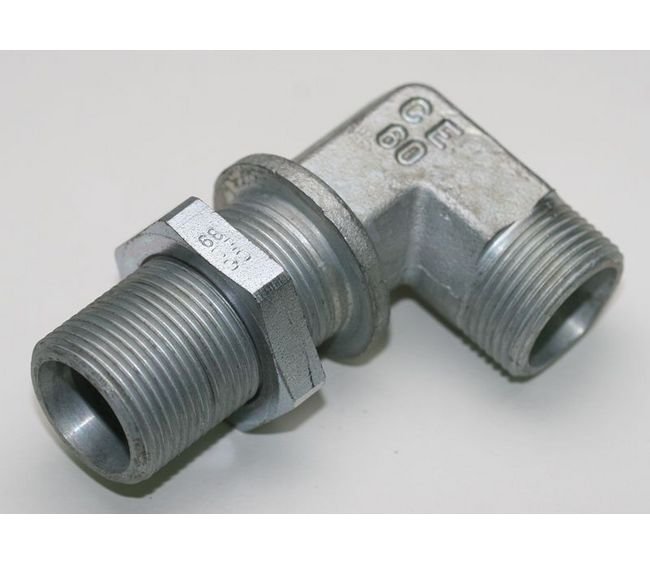

The Stainless Steel Bulkhead Elbow Body is a heavy-duty fitting designed for industrial applications, featuring a tube diameter of 30.0mm and a thread size of 42x2. With a nominal operating pressure of 400 bar, this fitting meets DIN 2353 standards. Its durable construction ensures reliable performance and easy installation, making it ideal for high-pressure systems. Trust in its precision engineering for a leak-free and secure connection.

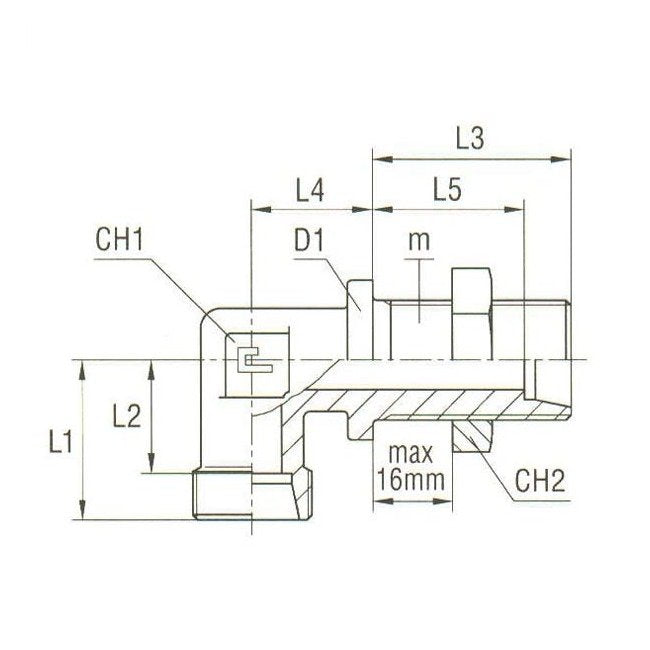

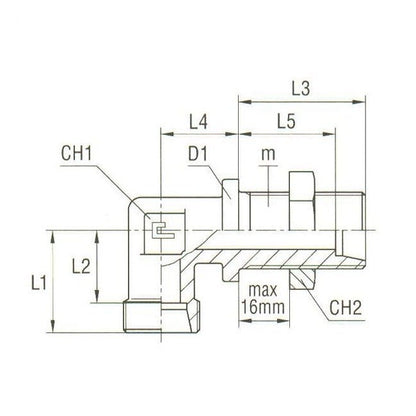

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
50 mm
Specifications D1
50 mm
Specifications L1
49.0 mm
Specifications L2
35.5 mm
Specifications L3
51 mm
Specifications L4
39.0 mm
Specifications L5
37.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
42x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
