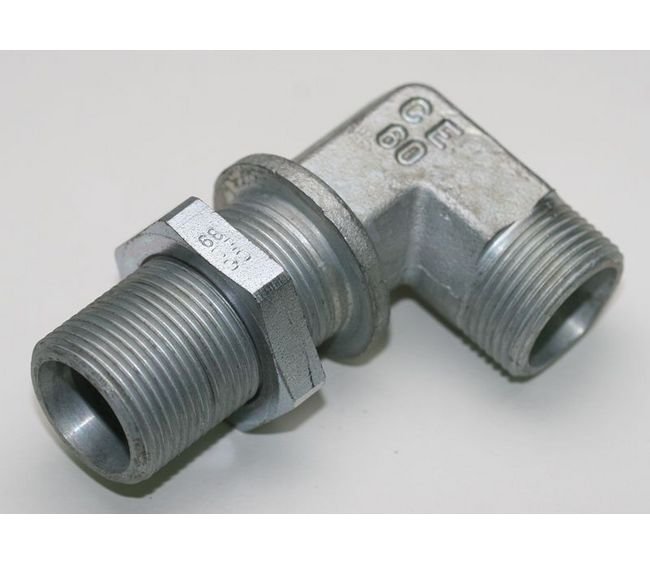

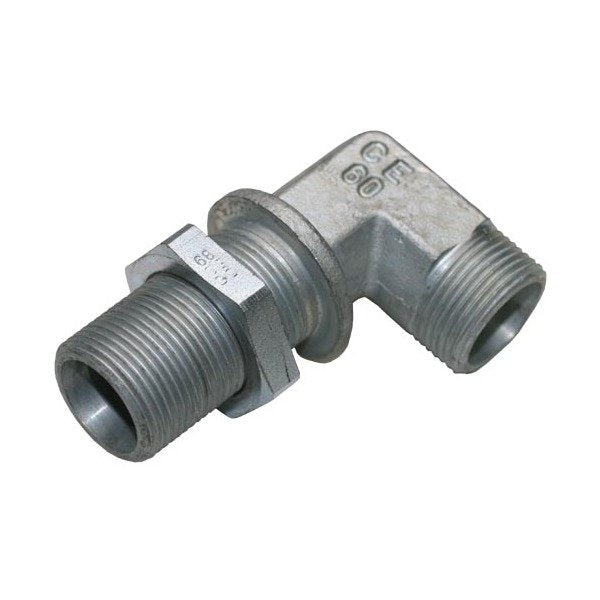

Stainless Steel Bulkhead Elbow - Body Only, DIN 2353 Compression Fitting
Stainless Steel Bulkhead Elbow - Body Only, DIN 2353 Compression Fitting
SKU:FIT-10f2e7
High-quality Stainless Steel Bulkhead Elbow Body for heavy-duty applications, DIN 2353 compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow - Body Only, DIN 2353 Compression Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow - Body Only, DIN 2353 Compression Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Elbow Body is designed for heavy-duty industrial applications, featuring a 16.0mm tube diameter and a pressure rating of 400 bar. Crafted from high-quality stainless steel, this fitting ensures durability and corrosion resistance. Meeting DIN 2353 standards, it offers precise fittings for secure connections, with dimensions carefully measured for optimal performance.

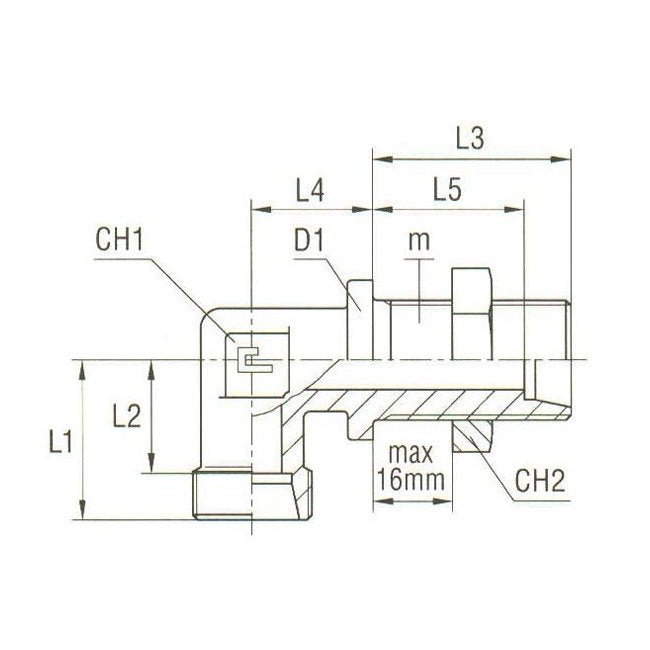

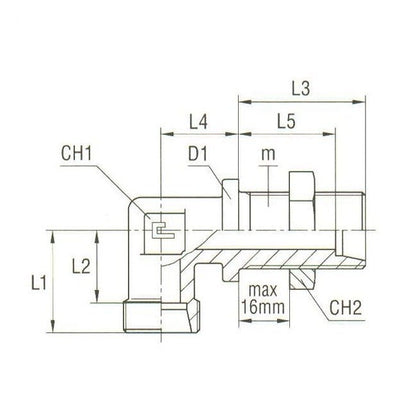

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
32 mm
Specifications D1
30 mm
Specifications L1
33.0 mm
Specifications L2
24.5 mm
Specifications L3
40 mm
Specifications L4
24 mm
Specifications L5
31.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
24x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
16.0 mm
