Stainless Steel Bulkhead Elbow - DIN 2353 Compression Fitting
Stainless Steel Bulkhead Elbow - DIN 2353 Compression Fitting
SKU:FIT-6720e8
High-quality Stainless Steel Bulkhead Elbow - DIN 2353 Compression Fitting for secure and durable tube connections.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow - DIN 2353 Compression Fitting
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow - DIN 2353 Compression Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

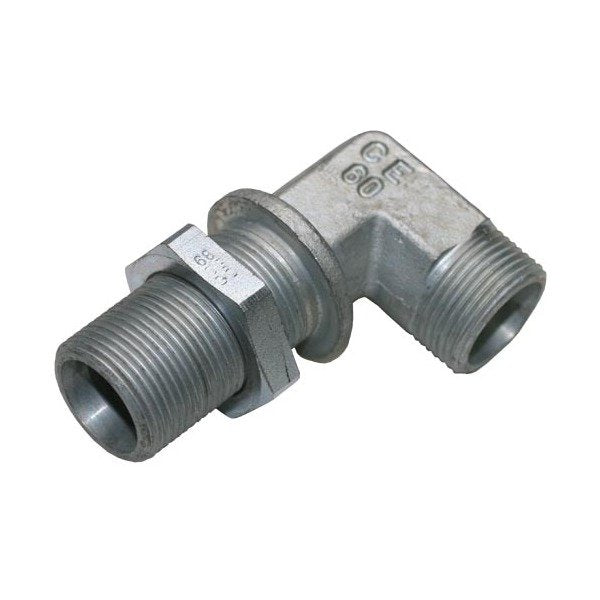

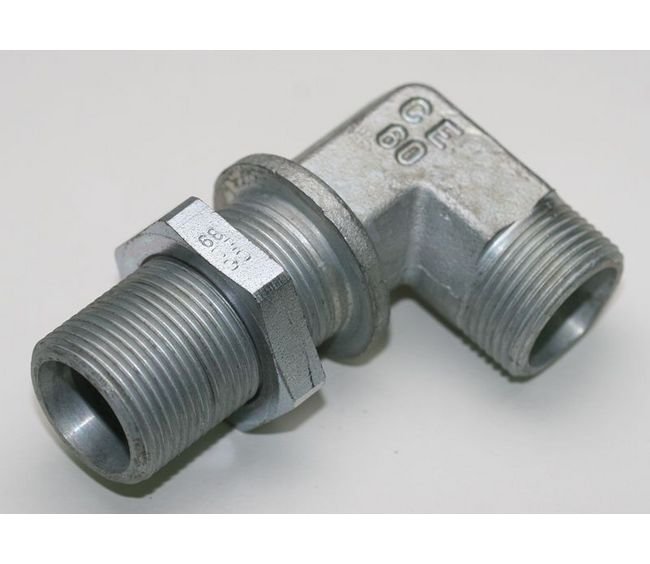

The Stainless Steel Bulkhead Elbow Body provides a reliable and durable light-duty solution for tube connections. With a tube diameter of 42.0 mm and a sturdy stainless steel construction, this fitting ensures a secure connection up to 160 bar pressure. Compliant with DIN 2353 standards, it features precise dimensions (L1: 51.0 mm, L2: 40.0 mm) for seamless integration. The Bulkhead Elbow is designed for efficiency and longevity in various industrial applications.

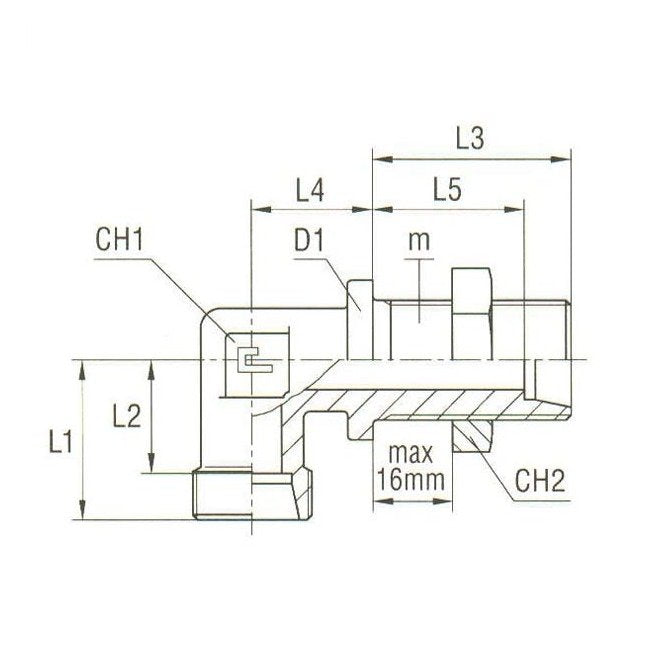

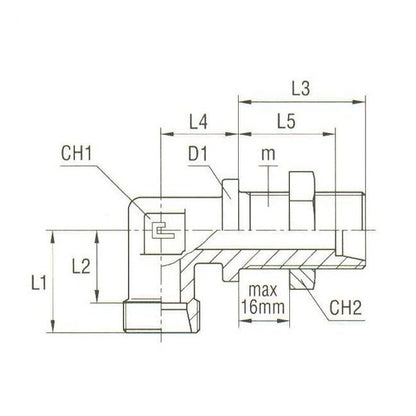

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
65 mm
Specifications D1
60 mm
Specifications L1
51.0 mm
Specifications L2
40.0 mm
Specifications L3
47 mm
Specifications L4
43.0 mm
Specifications L5
36 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
