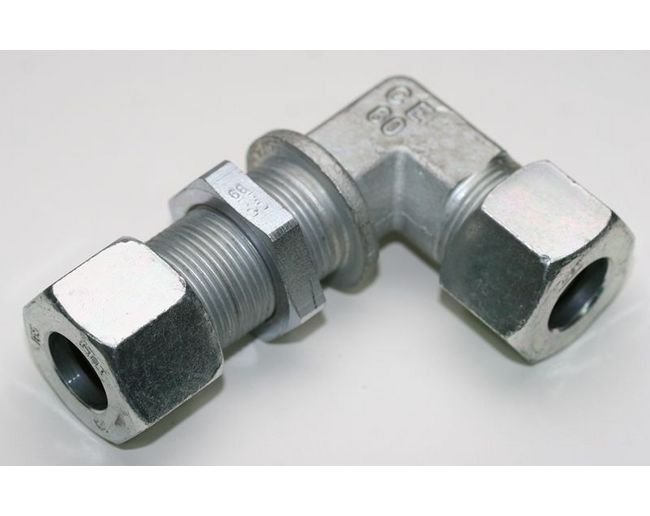

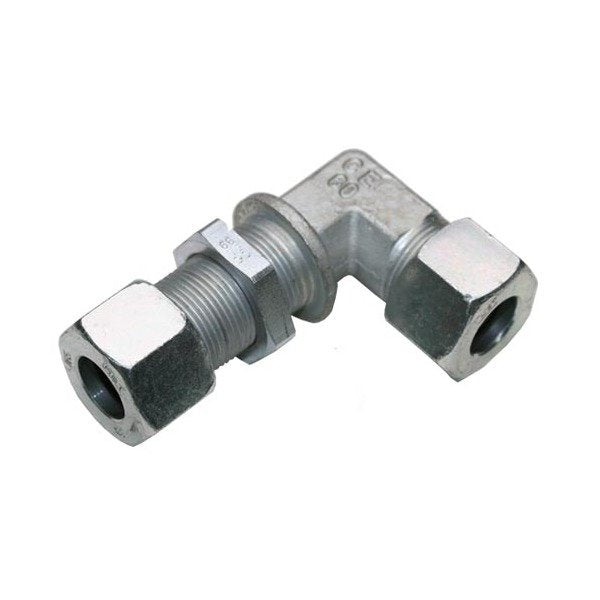

Stainless Steel Bulkhead Elbow - DIN 2353 Compression Fitting
Stainless Steel Bulkhead Elbow - DIN 2353 Compression Fitting
SKU:FIT-ac4f74
Heavy-duty Stainless Steel Bulkhead Elbow - DIN 2353 Compression Fitting for 20.0 mm tubes, 400 bar pressure, and precise dimensions.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

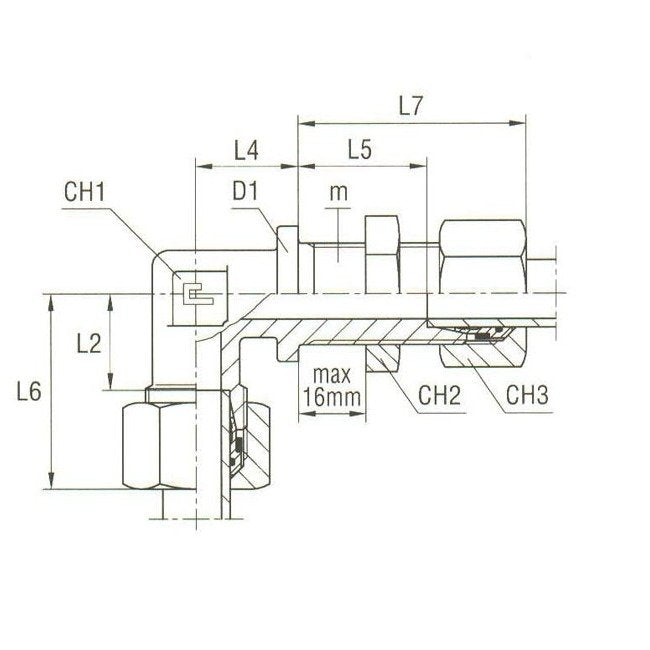

The Stainless Steel Bulkhead Elbow - DIN 2353 Compression Fitting is designed for heavy-duty applications with a tube diameter of 20.0 mm and a thread size of 30x2. It operates at a nominal pressure of 400 bar, meeting stringent DIN 2353 standards. Its sturdy construction ensures durability and reliability in industrial settings. The precise dimensions, including L2: 26.5 mm, L4: 30 mm, L5: 33.5 mm, L6: 37 mm, L7: 55 mm, D1: 36 mm, CH1: 27 mm, CH2: 41 mm, and CH3: 36 mm, make it compatible with various piping systems.
Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
41 mm
Specifications Ch3
36 mm
Specifications D1
36 mm
Specifications L2
26.5 mm
Specifications L4
30 mm
Specifications L5
33.5 mm
Specifications L6
37 mm
Specifications L7
55 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
30x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
20.0 mm
