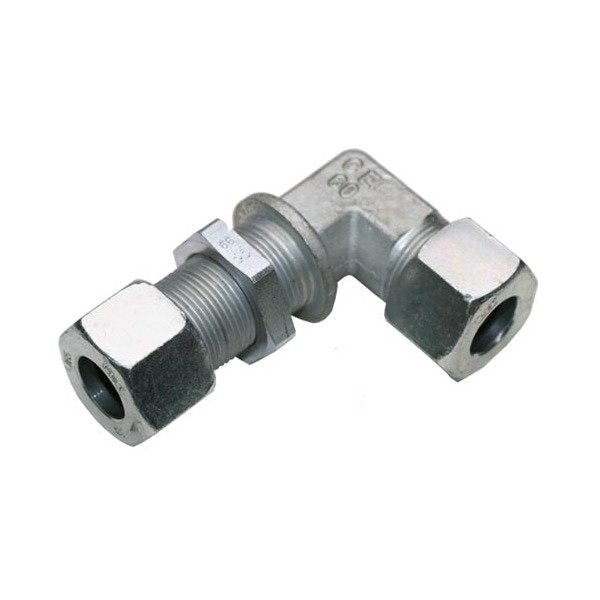

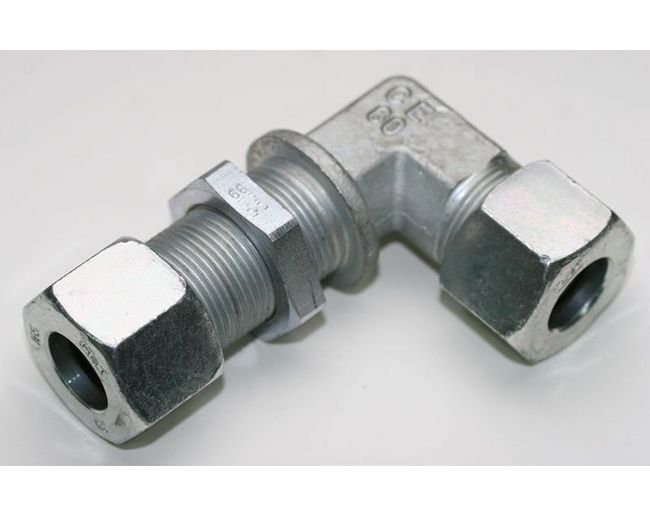

Stainless Steel Bulkhead Elbow Equipped B4 Ring, DIN 2353 Compression Fitting

Name: Stainless Steel Bulkhead Elbow Equipped B4 Ring, DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-f4c007
Price: 59.99 USD
Availability: OutOfStock

SKU:FIT-f4c007

Heavy-duty stainless steel Bulkhead Elbow Equipped B4 Ring for high-pressure applications. DIN 2353 Compliant.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

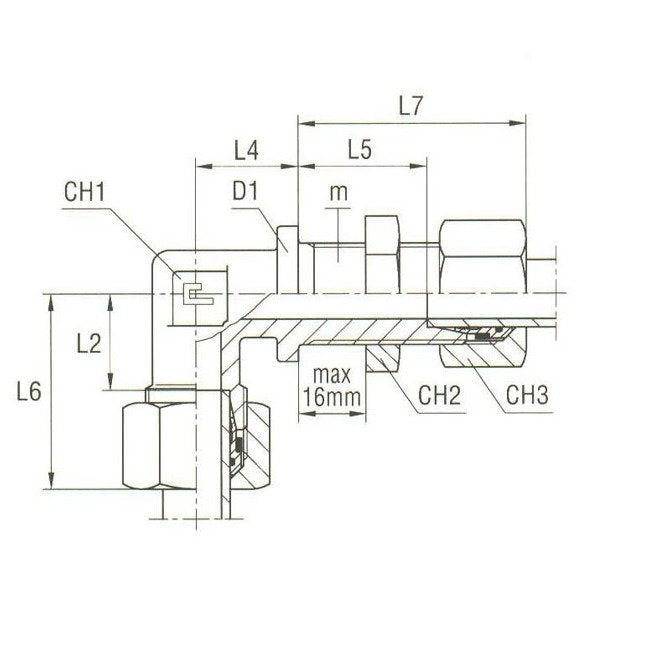

The Stainless Steel Bulkhead Elbow Equipped B4 Ring is a heavy-duty fitting designed for high-pressure applications, with a tube diameter of 16.0mm and a nominal operating pressure of 400 bar. Crafted from high-quality stainless steel, this fitting ensures durability and corrosion resistance. Compliant with DIN 2353 standards, it features precise dimensions including L2: 24.5mm, L4: 24mm, L5: 31.5mm, L6: 33mm, L7: 50mm, D1: 30mm, CH1: 24mm, CH2: 32mm, CH3: 30mm, making it ideal for industrial and institutional use.

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

32 mm

Specifications Ch3

30 mm

Specifications D1

30 mm

Specifications L2

24.5 mm

Specifications L4

24 mm

Specifications L5

31.5 mm

Specifications L6

33 mm

Specifications L7

50 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

24x1.5

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

16.0 mm
