Stainless Steel Bulkhead Elbow Kit with DIN 2353 Compression Fitting & 400 Bar Pressure Rating
Stainless Steel Bulkhead Elbow Kit with DIN 2353 Compression Fitting & 400 Bar Pressure Rating
SKU:FIT-a1b4cb
High-performance stainless steel bulkhead elbow with DIN 2353 compliance, 400 bar pressure rating. Ideal for heavy-duty applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow Kit with DIN 2353 Compression Fitting & 400 Bar Pressure Rating
$59.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow Kit with DIN 2353 Compression Fitting & 400 Bar Pressure Rating
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bulkhead Elbow - Equipped B4 Ring is designed for heavy-duty applications with its stainless steel construction and DIN 2353 compliance. This fitting features a tube diameter of 25.0mm and a robust pressure rating of 400 bar, ensuring reliable performance under demanding conditions. With precise dimensions and high-quality materials, this bulkhead elbow guarantees secure connections and efficient fluid transfer.

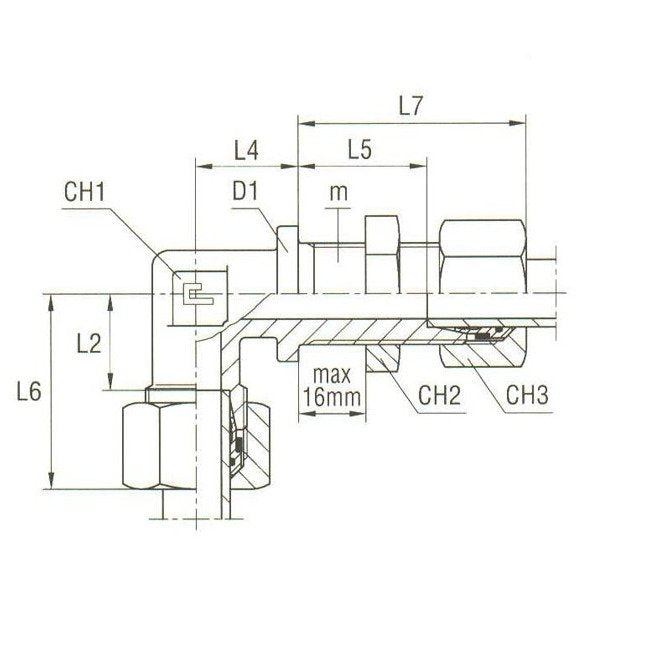

Product Specifications
Specifications Ch1
36 mm
Specifications Ch2
46 mm
Specifications Ch3
46 mm
Specifications D1
42 mm
Specifications L2
30.0 mm
Specifications L4
34 mm
Specifications L5
35 mm
Specifications L6
42 mm
Specifications L7
59 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
36x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
25.0 mm
