Stainless Steel Bulkhead Elbow with B3 Ring
Stainless Steel Bulkhead Elbow with B3 Ring
SKU:FIT-2499d0
Heavy-duty stainless steel Bulkhead Elbow with B3 Ring, DIN 2353 compliant
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow with B3 Ring
$35.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow with B3 Ring
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Elbow equipped with a B3 Ring is designed for heavy-duty applications, featuring a tube diameter of 12.0 mm and a nominal operating pressure of 630 bar. Constructed with high-quality stainless steel, this fitting ensures durability and reliable performance. Compliant with DIN 2353 standards, it meets the stringent requirements of institutional and government procurement.

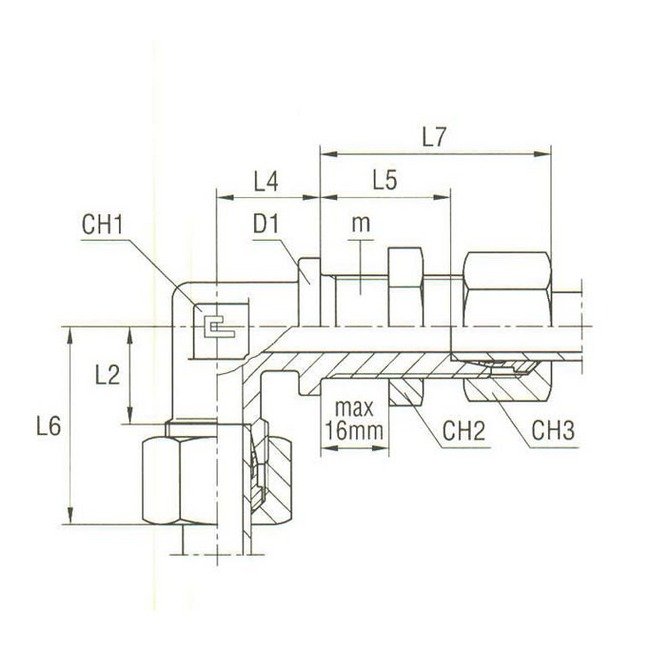

Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
27 mm
Specifications Ch3
24 mm
Specifications D1
27 mm
Specifications L2
21.5 mm
Specifications L4
21 mm
Specifications L5
30.5 mm
Specifications L6
29 mm
Specifications L7
47 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
20x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
