Stainless Steel Bulkhead Elbow with B3 Ring, DIN 2353 Compression Fitting
Stainless Steel Bulkhead Elbow with B3 Ring, DIN 2353 Compression Fitting
SKU:FIT-c13597
Heavy Duty Stainless Steel Bulkhead Elbow with B3 Ring, DIN 2353 Compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow with B3 Ring, DIN 2353 Compression Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow with B3 Ring, DIN 2353 Compression Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Elbow with B3 Ring is a Heavy Duty fitting designed for maximum performance. Crafted from high-grade stainless steel, this fitting ensures durability and longevity under high pressure conditions, with a nominal operating pressure of 630 bar. Meeting DIN 2353 standards, it guarantees reliability and adherence to quality benchmarks. With precise dimensions and corrosion resistance, this fitting is ideal for demanding industrial applications.

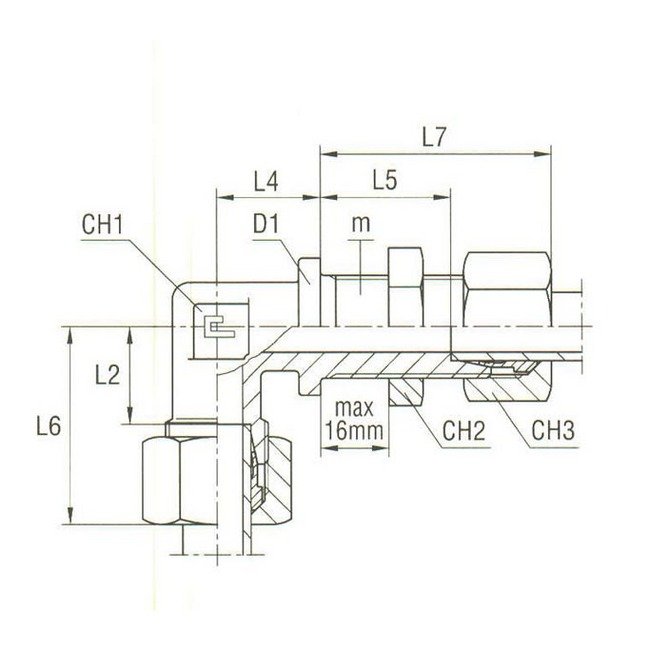

Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
24 mm
Specifications Ch3
22 mm
Specifications D1
24 mm
Specifications L2
17.5 mm
Specifications L4
20 mm
Specifications L5
29.5 mm
Specifications L6
25 mm
Specifications L7
46 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
