Stainless Steel Bulkhead Elbow with B4 Ring, DIN 2353 Compression Fitting
Stainless Steel Bulkhead Elbow with B4 Ring, DIN 2353 Compression Fitting
SKU:FIT-8c1b00
High-quality Stainless Steel Bulkhead Elbow fitting, DIN 2353 compliant, ideal for light-duty applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow with B4 Ring, DIN 2353 Compression Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow with B4 Ring, DIN 2353 Compression Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Elbow with B4 Ring is a durable and reliable fitting suitable for light-duty applications. Crafted with high-quality stainless steel, this fitting ensures corrosion resistance and long-lasting performance. With a tube diameter of 42.0mm and a nominal operating pressure of 160 bar, it meets DIN 2353 standards, guaranteeing precision and safety in fluid conveyance systems. Featuring precise dimensions and a secure thread size of 52x2, this bulkhead elbow is designed for seamless installation and optimal functionality. Trusted for its quality and adherence to industry standards, this fitting is a dependable choice for various institutional and government procurement needs.

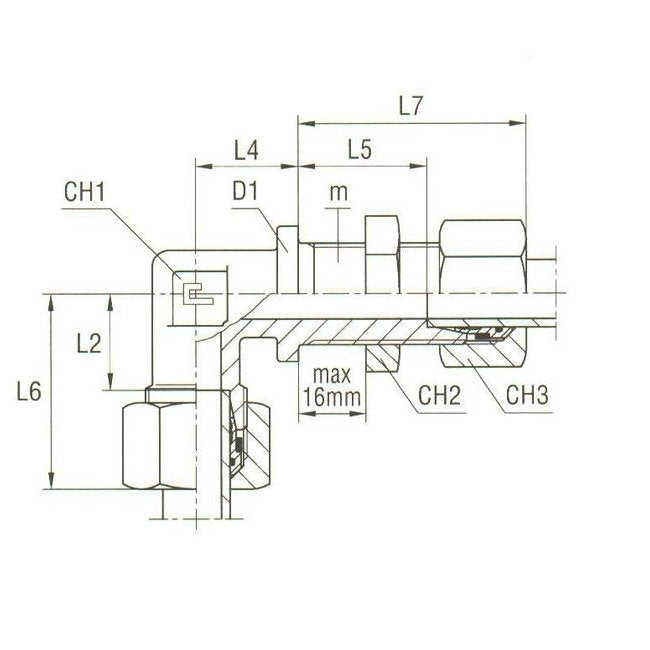

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
65 mm
Specifications Ch3
60 mm
Specifications D1
60 mm
Specifications L2
40.0 mm
Specifications L4
43.0 mm
Specifications L5
36 mm
Specifications L6
51 mm
Specifications L7
59 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
