Stainless Steel Bulkhead Elbow with Equipped B3 Ring
Stainless Steel Bulkhead Elbow with Equipped B3 Ring
SKU:FIT-c92ad8
High-quality Stainless Steel Bulkhead Elbow perfect for light-duty applications. Compliant with DIN 2353 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow with Equipped B3 Ring
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow with Equipped B3 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

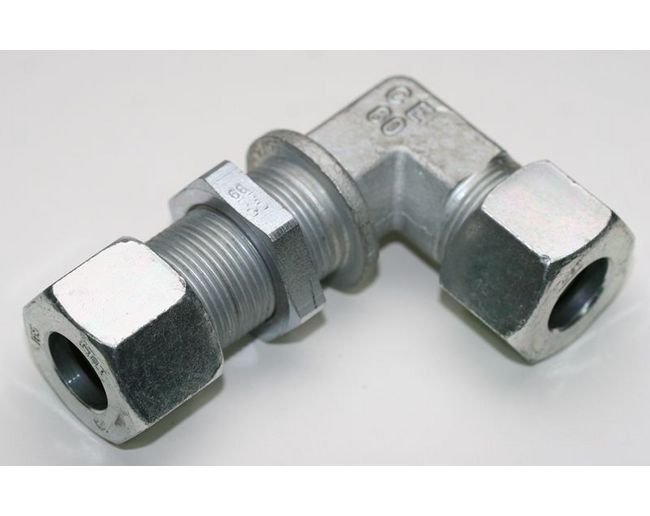

The Stainless Steel Bulkhead Elbow with Equipped B3 Ring is designed for light-duty applications, featuring a tube diameter of 42.0mm and a pressure rating of 160 bar. Crafted from high-quality stainless steel, this fitting ensures durability and reliability. With a threaded size of 52x2 and compliance with DIN 2353 standards, this bulkhead elbow is ideal for a wide range of industrial uses.

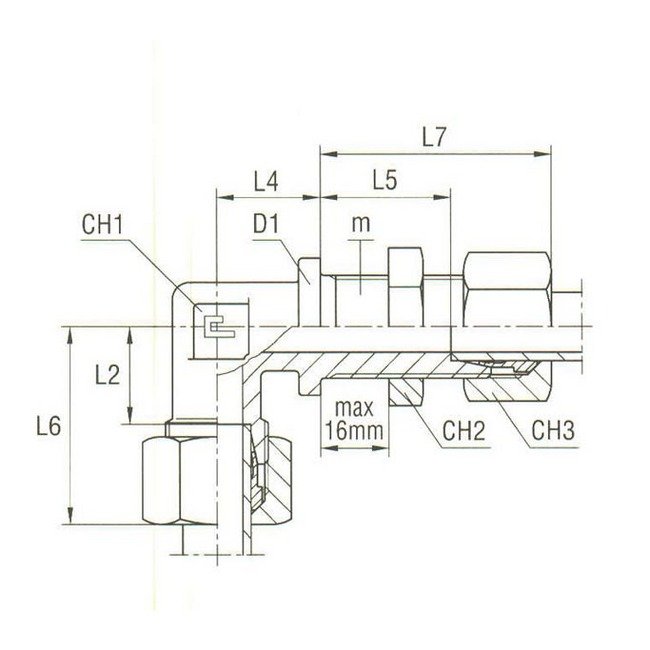

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
65 mm
Specifications Ch3
60 mm
Specifications D1
60 mm
Specifications L2
40.0 mm
Specifications L4
43.0 mm
Specifications L5
36 mm
Specifications L6
51 mm
Specifications L7
59 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
