Stainless Steel Bulkhead Elbow with Equipped B3 Ring

Name: Stainless Steel Bulkhead Elbow with Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-942cba
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-942cba

Durable stainless steel bulkhead elbow, 6.0mm tube diameter, 315 bar pressure, DIN 2353 compliant

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Bulkhead Elbow with Equipped B3 Ring is designed for light-duty industrial applications. Made from high-quality stainless steel, it ensures durability and corrosion resistance. With a tube diameter of 6.0mm and a nominal operating pressure of 315 bar, this fitting guarantees reliable performance. Meeting DIN 2353 standards, this bulkhead elbow offers precision engineering and a secure fit, making it ideal for various compression fitting setups.

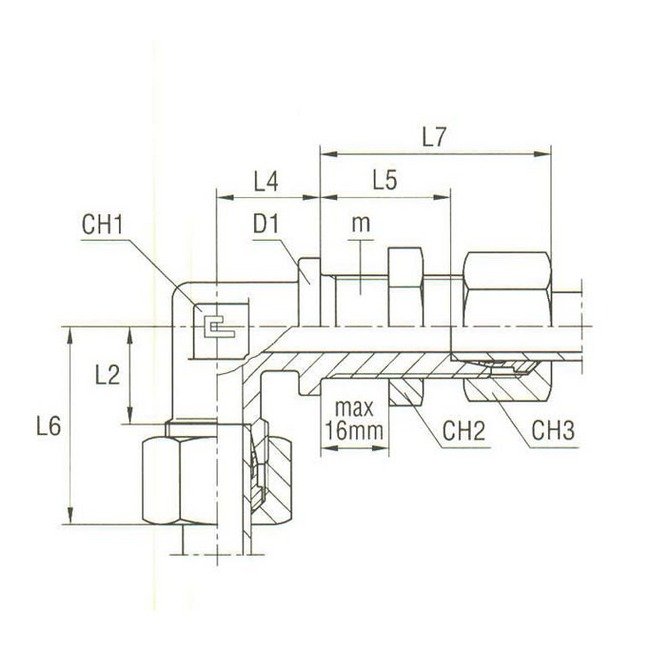

Product Specifications

Specifications Ch1

12 mm

Specifications Ch2

17.0 mm

Specifications Ch3

14 mm

Specifications D1

17 mm

Specifications L2

12.0 mm

Specifications L4

14 mm

Specifications L5

27 mm

Specifications L6

19 mm

Specifications L7

42 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

12x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm
