Stainless Steel Bulkhead Elbow with Equipped B3 Ring
Stainless Steel Bulkhead Elbow with Equipped B3 Ring
SKU:FIT-3379c9
Durable Stainless Steel Bulkhead Elbow for Light-Duty Applications, 315 Bar Max Pressure, DIN 2353 Standard
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow with Equipped B3 Ring
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow with Equipped B3 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Elbow with Equipped B3 Ring is designed for light-duty applications with a maximum operating pressure of 315 bar. Crafted from durable stainless steel, this fitting ensures reliability and longevity. With a Tube Diameter of 8.0 mm and meeting DIN 2353 standards, it provides a secure and precise connection for your plumbing needs. The Bulkhead Elbow is engineered with precision and quality in mind, offering optimal performance in demanding environments.

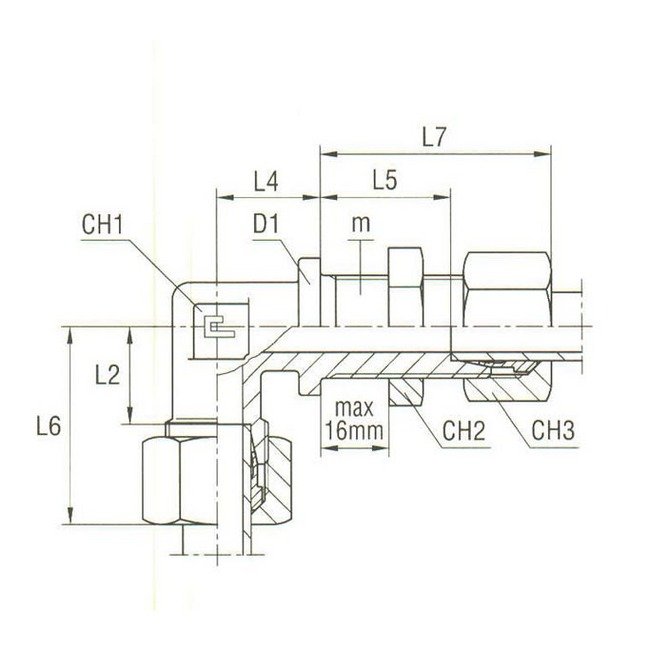

Product Specifications
Specifications Ch1
12 mm
Specifications Ch2
19.0 mm
Specifications Ch3
17 mm
Specifications D1
19 mm
Specifications L2
14.0 mm
Specifications L4
17 mm
Specifications L5
27 mm
Specifications L6
21 mm
Specifications L7
42 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
