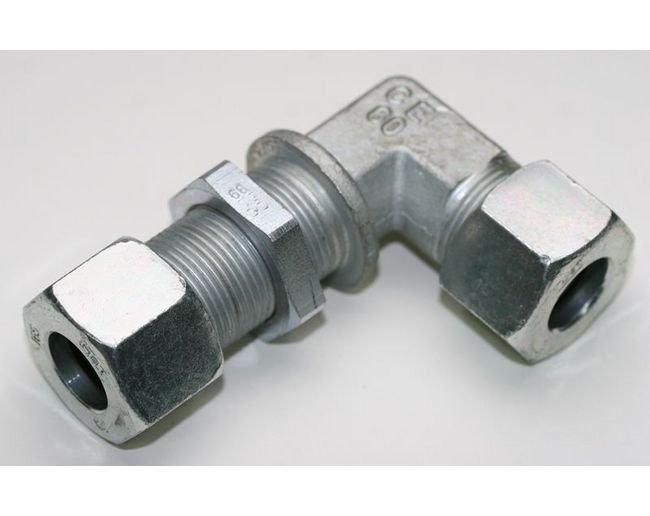

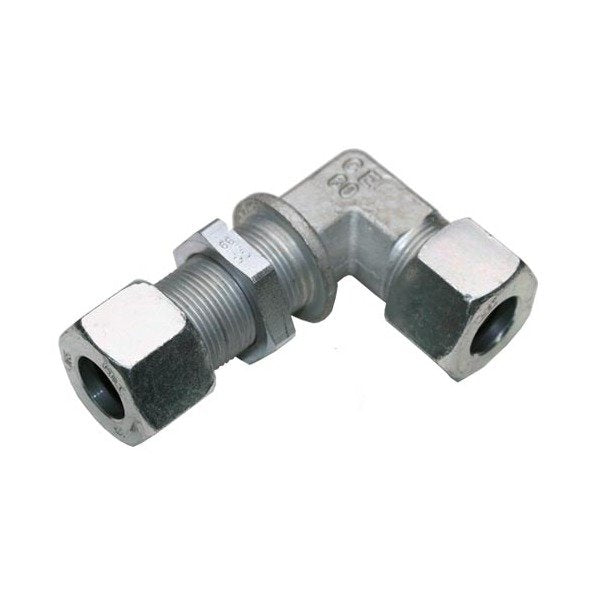

Stainless Steel Bulkhead Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
Stainless Steel Bulkhead Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
SKU:FIT-0e6d3a
High-quality Stainless Steel Bulkhead Elbow for light-duty applications, DIN 2353 compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Elbow with Equipped B3 Ring is a durable and reliable fitting designed for light-duty applications. Crafted from high-grade stainless steel, it ensures corrosion resistance and longevity. With a tube diameter of 12.0 mm and a nominal operating pressure of 315 bar, this fitting excels in demanding industrial environments. Meeting DIN 2353 standards, it guarantees precision and quality, making it ideal for institutional and government procurement needs.

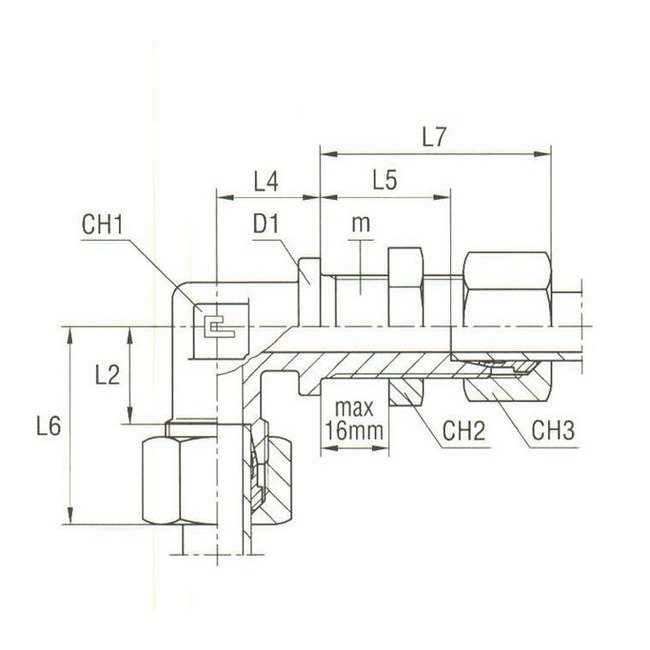

Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
24 mm
Specifications Ch3
22 mm
Specifications D1
24 mm
Specifications L2
17.0 mm
Specifications L4
20 mm
Specifications L5
29 mm
Specifications L6
24 mm
Specifications L7
44 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
