Stainless Steel Bulkhead Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
Stainless Steel Bulkhead Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
SKU:FIT-0d91d5
Heavy-duty Stainless Steel Bulkhead Elbow with Equipped B3 Ring, provides high-pressure durability in compact design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Elbow with Equipped B3 Ring is a heavy-duty fitting designed for industrial applications. Made of durable stainless steel, this fitting ensures reliable performance under high pressures up to 315 bar. With a tube diameter of 38.0mm and complying with DIN 2353 standards, it guarantees precision and quality. The compact design with specified dimensions makes it ideal for tight spaces while maintaining exceptional strength and corrosion resistance.

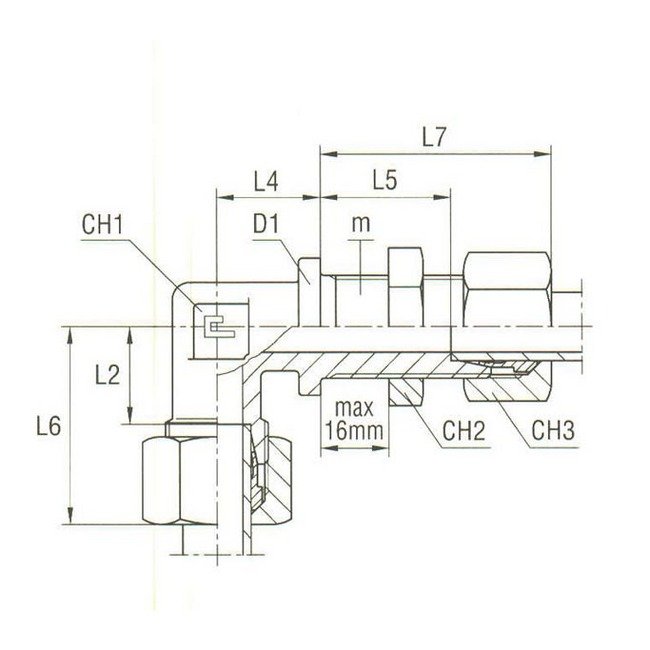

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
65 mm
Specifications Ch3
60 mm
Specifications D1
60 mm
Specifications L2
41.0 mm
Specifications L4
43.0 mm
Specifications L5
37 mm
Specifications L6
57 mm
Specifications L7
68 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
38.0 mm
