Stainless Steel Bulkhead Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
Stainless Steel Bulkhead Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
SKU:FIT-8e3582
Durable Stainless Steel Bulkhead Elbow for high-pressure applications, DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Elbow with Equipped B3 Ring is a reliable light-duty fitting designed for high-pressure applications. Constructed from premium stainless steel, this fitting ensures durability and corrosion resistance. With precise dimensions and meeting DIN 2353 standards, it offers a secure and leak-free connection. The Bulkhead Elbow is ideal for institutional setups requiring a robust fitting for tube connections, offering a nominal operating pressure of 160 bar. Enhance your system's performance with this quality compression fitting.

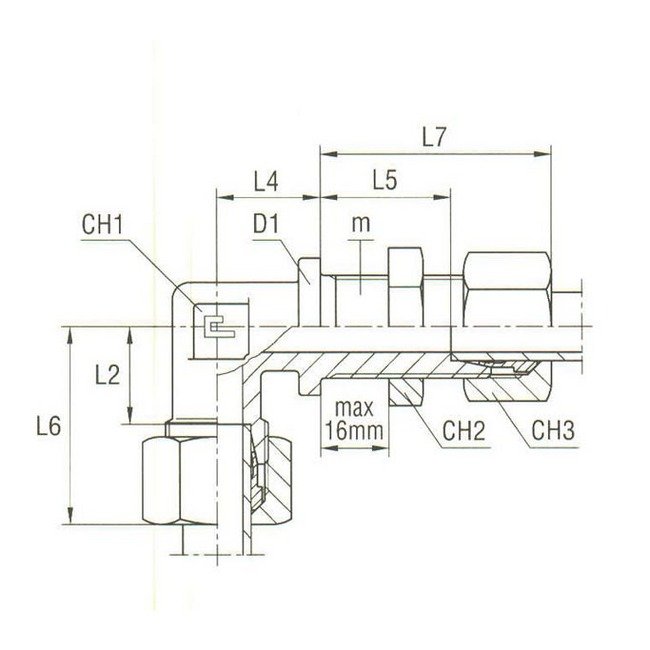

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
55 mm
Specifications Ch3
50 mm
Specifications D1
50 mm
Specifications L2
34.5 mm
Specifications L4
39.0 mm
Specifications L5
36.5 mm
Specifications L6
45 mm
Specifications L7
58 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
45x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
35.0 mm
