Stainless Steel Bulkhead Elbow with Equipped B4 Ring
Stainless Steel Bulkhead Elbow with Equipped B4 Ring
SKU:FIT-e15592
High-quality Stainless Steel Bulkhead Elbow for light-duty applications. Pressure rating: 315 bar. DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow with Equipped B4 Ring
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow with Equipped B4 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

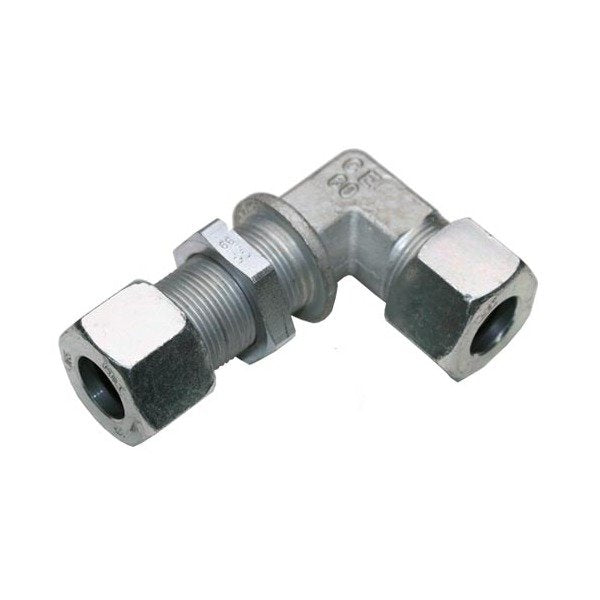

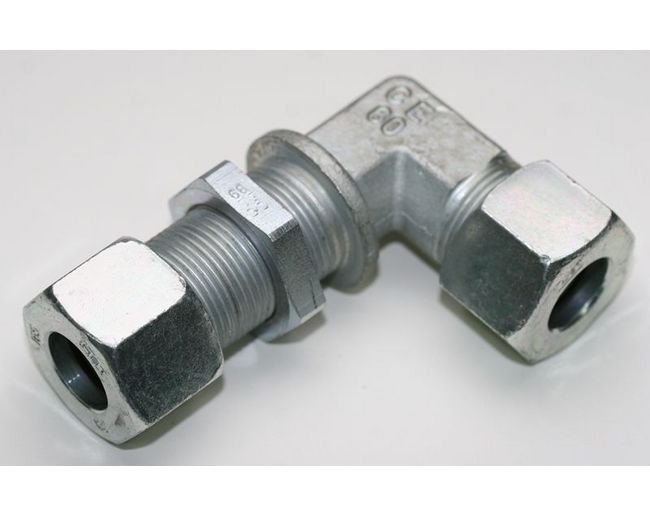

The Stainless Steel Bulkhead Elbow with Equipped B4 Ring is designed for light-duty applications, featuring a pressure rating of 315 bar. Crafted from high-quality stainless steel, this fittings' durability is exceptional. With a tube diameter of 6.0 mm and meeting DIN 2353 standards, this elbow ensures reliable performance and longevity in various industrial settings.

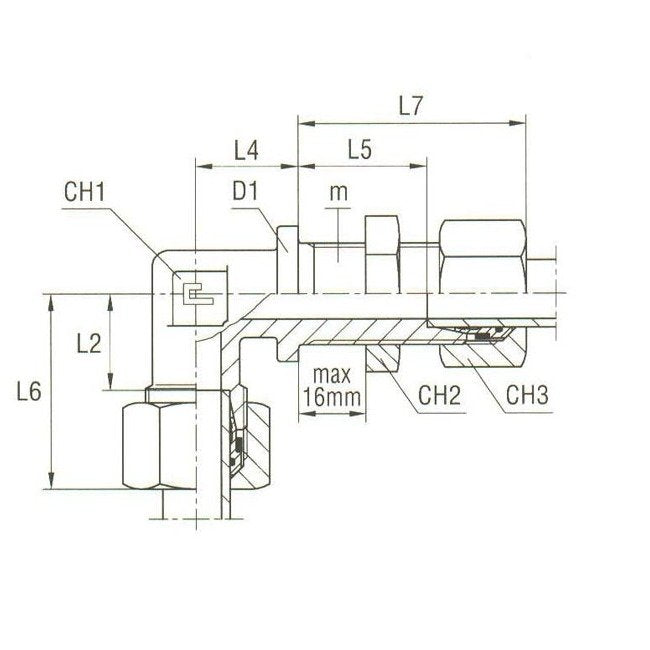

Product Specifications
Specifications Ch1
12 mm
Specifications Ch2
17.0 mm
Specifications Ch3
14 mm
Specifications D1
17 mm
Specifications L2
12.0 mm
Specifications L4
14 mm
Specifications L5
27 mm
Specifications L6
19 mm
Specifications L7
42 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
12x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
