Stainless Steel Bulkhead Elbow with Equipped B4 Ring
Stainless Steel Bulkhead Elbow with Equipped B4 Ring
SKU:FIT-4402de
Durable Stainless Steel Bulkhead Elbow - DIN 2353 Compliant, Ideal for Light-Duty Applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow with Equipped B4 Ring
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow with Equipped B4 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Elbow with Equipped B4 Ring is a durable and reliable fitting designed for applications requiring light-duty pressure resistance. Constructed from high-grade stainless steel, with a tube diameter of 12.0mm, this fitting ensures superior performance even under operating pressures up to 315 bar. It meets DIN 2353 standards, guaranteeing quality and precision, making it suitable for industrial and institutional settings.

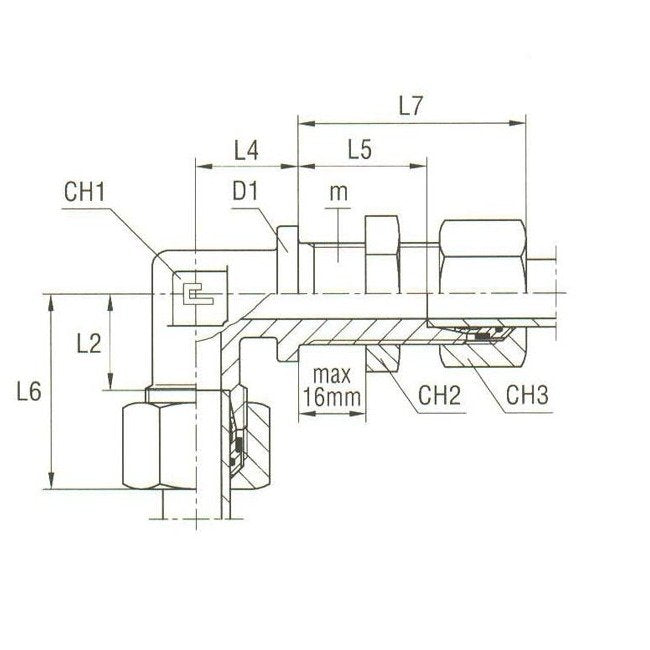

Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
24 mm
Specifications Ch3
22 mm
Specifications D1
24 mm
Specifications L2
17.0 mm
Specifications L4
20 mm
Specifications L5
29 mm
Specifications L6
24 mm
Specifications L7
44 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
