Stainless Steel Bulkhead Elbow with Equipped B4 Ring
Stainless Steel Bulkhead Elbow with Equipped B4 Ring
SKU:FIT-f315f1
Heavy-duty Stainless Steel Bulkhead Elbow with Equipped B4 Ring, DIN 2353 compliant for high pressure applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Elbow with Equipped B4 Ring
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Elbow with Equipped B4 Ring
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Elbow with Equipped B4 Ring is designed for heavy-duty applications, featuring a tube diameter of 30.0 mm and a thread size of 42x2. With a nominal operating pressure of 400 bar, this bulkhead elbow ensures reliable performance under high pressure conditions. Meeting DIN 2353 standards, this fitting is crafted from durable stainless steel for longevity and corrosion resistance, making it an ideal choice for industrial settings requiring robust compression fittings.

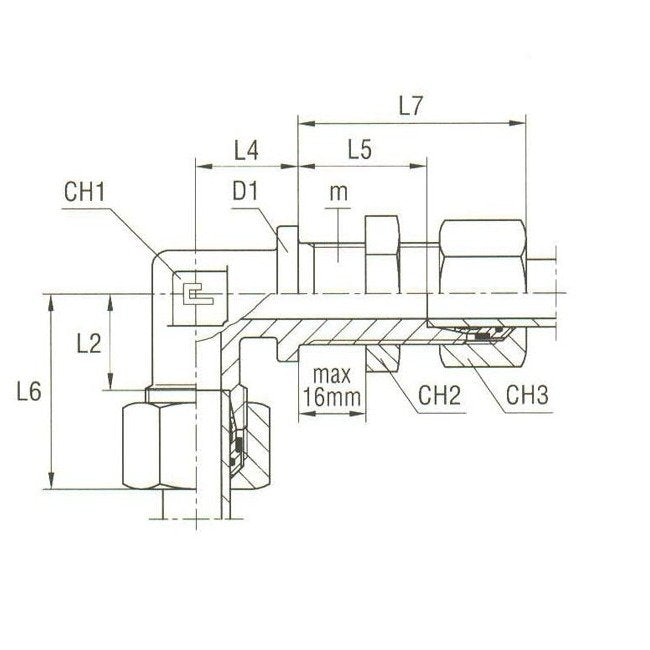

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
50 mm
Specifications Ch3
50 mm
Specifications D1
50 mm
Specifications L2
35.5 mm
Specifications L4
39.0 mm
Specifications L5
37.5 mm
Specifications L6
49 mm
Specifications L7
64 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
42x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
