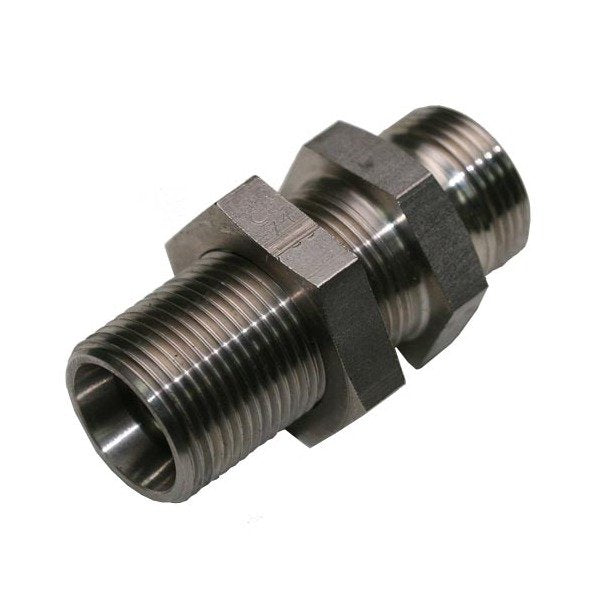

Stainless Steel Bulkhead Union Body, 12.0mm Tube, Light Duty, DIN 2353 Compliant

Name: Stainless Steel Bulkhead Union Body, 12.0mm Tube, Light Duty, DIN 2353 Compliant
Brand: World Wide Metric, Inc.
SKU: FIT-16d714
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-16d714

Durable stainless steel Bulkhead Union Body for 12.0mm tube, light-duty applications, DIN 2353 compliant.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Bulkhead Union Body provides a secure and leak-free connection for light-duty applications. Crafted from high-quality stainless steel, this body ensures durability and corrosion resistance. With a Tube Diameter of 12.0mm and a pressure rating of 315 bar, it meets DIN 2353 standards. Designed with precision, it offers easy installation and reliable performance, making it ideal for various industrial and hydraulic systems.

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

24 mm

Specifications L1

17.0 mm

Specifications L2

36.0 mm

Specifications L3

10 mm

Specifications L4

29 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

18x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm
