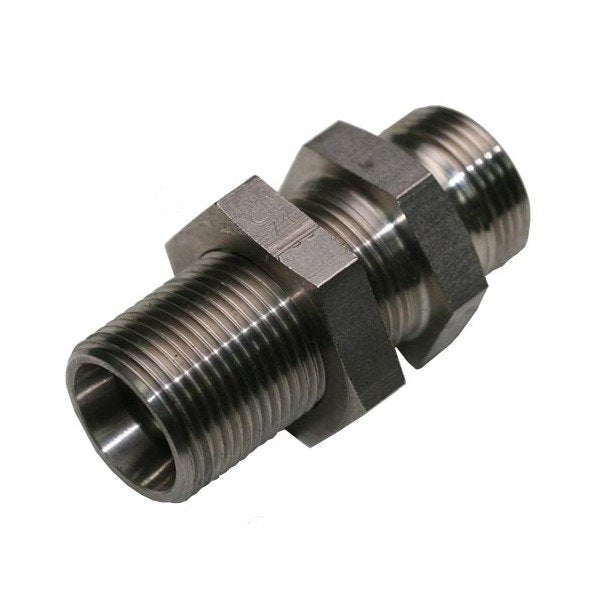

Stainless Steel Bulkhead Union Body, DIN 2353 Compression Fitting
Stainless Steel Bulkhead Union Body, DIN 2353 Compression Fitting
SKU:FIT-9ae73c
High-performance Stainless Steel Bulkhead Union Body for DIN 2353 Compression Fittings, ideal for heavy-duty applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union Body, DIN 2353 Compression Fitting
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union Body, DIN 2353 Compression Fitting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Union Body offers heavy-duty performance with a tube diameter of 30.0 mm and a thread size of 42x2. Designed to withstand a nominal operating pressure of 400 bar, this fitting meets DIN 2353 standards. With precise dimensions and durable stainless steel construction, it ensures reliable performance in demanding industrial environments.
Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
50 mm
Specifications L1
35.0 mm
Specifications L2
51 mm
Specifications L3
21.5 mm
Specifications L4
37.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
42x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
