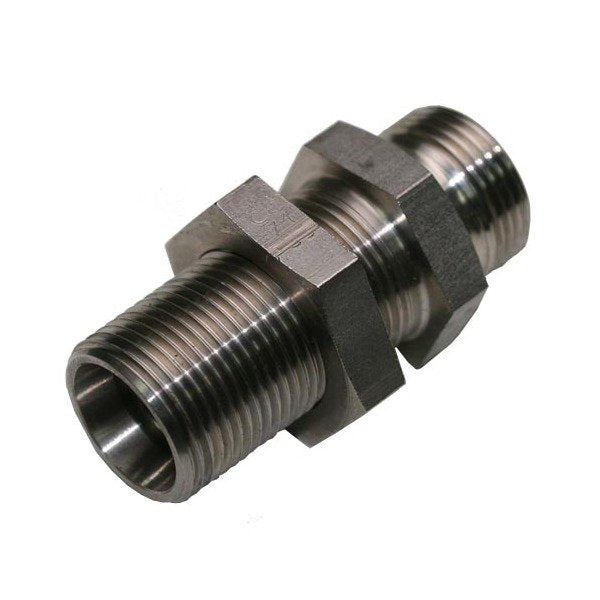

Stainless Steel Bulkhead Union Body, DIN 2353 Compression Fitting
Stainless Steel Bulkhead Union Body, DIN 2353 Compression Fitting
SKU:FIT-702f58
Stainless Steel Bulkhead Union Body for 10.0mm tubes, DIN 2353 compliant, ideal for light-duty applications
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union Body, DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union Body, DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Union Body is a reliable and durable component designed for light-duty applications. Crafted from high-quality stainless steel, this fitting ensures a secure connection for tubes with a diameter of 10.0 mm. With a nominal operating pressure of 315 bar and meeting DIN 2353 standards, it offers exceptional performance and longevity. The precise dimensions of L1, L2, L3, L4, CH1, and CH2 make it easy to install and maintain, providing a seamless solution for your compression fitting needs.
Product Specifications
Specifications Ch1
22 mm
Specifications Ch2
22 mm
Specifications L1
17.0 mm
Specifications L2
35.0 mm
Specifications L3
10 mm
Specifications L4
28 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
16x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
