Stainless Steel Bulkhead Union Body - DIN 2353 Compression Fittings
Stainless Steel Bulkhead Union Body - DIN 2353 Compression Fittings
SKU:FIT-8b3654
Durable Stainless Steel Bulkhead Union Body for secure and reliable connections in light-duty applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union Body - DIN 2353 Compression Fittings
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union Body - DIN 2353 Compression Fittings
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

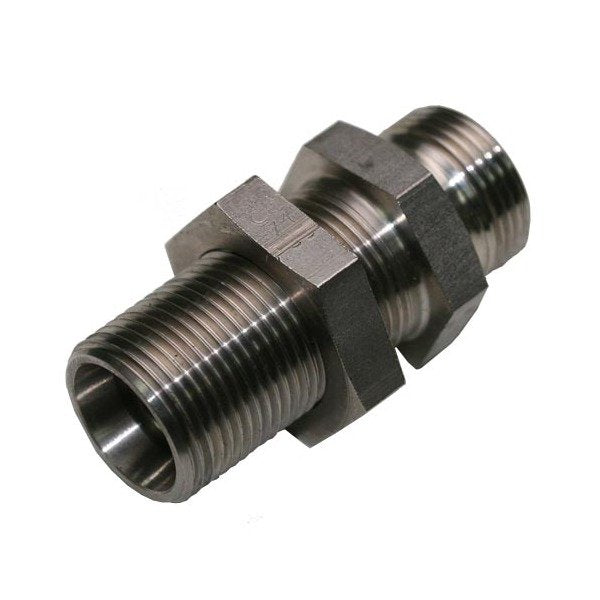

The Stainless Steel Bulkhead Union Body is designed for light-duty applications with a Tube Diameter of 22mm and a Thread Size of 30x2. It operates at a Nominal Pressure of 160 bar and meets DIN 2353 standards. With precise dimensions and corrosion-resistant material, this fitting ensures secure connections and reliable performance.
Product Specifications
Specifications Ch1
36 mm
Specifications Ch2
41 mm
Specifications L1
24.0 mm
Specifications L2
42 mm
Specifications L3
16.5 mm
Specifications L4
34.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
30x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
