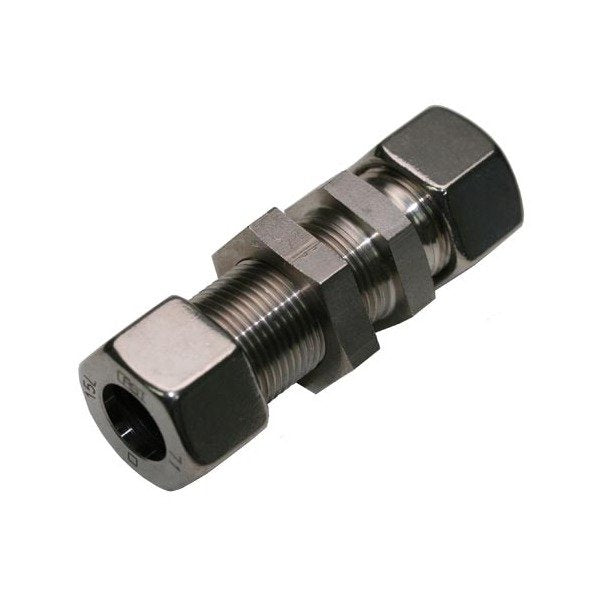

Stainless Steel Bulkhead Union Compression Fitting with DIN 2353 Standard - 12.0 mm, 630 bar

Name: Stainless Steel Bulkhead Union Compression Fitting with DIN 2353 Standard - 12.0 mm, 630 bar
Brand: World Wide Metric, Inc.
SKU: FIT-0f9905
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-0f9905

Heavy-duty Stainless Steel Bulkhead Union Compression Fitting with DIN 2353 Standard. Tube Diameter: 12.0 mm, Pressure: 630 bar.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

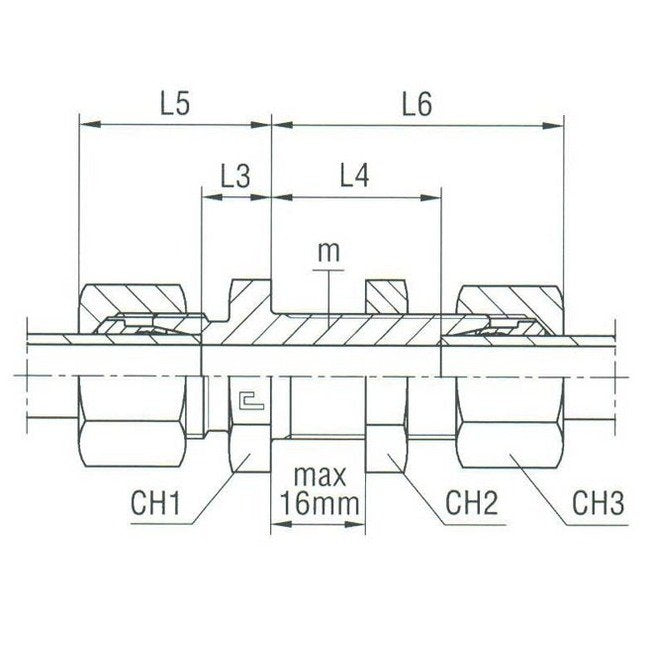

The Stainless Steel Bulkhead Union Compression Fitting with Equipped B3 Ring is designed for heavy-duty applications, featuring a tube diameter of 12.0 mm and 20x1.5 m - Thread Size. With a nominal operating pressure of 630 bar, this fitting ensures reliable performance under high pressure conditions. Measuring L3: 14.5 mm, L4: 30.5 mm, L5: 31 mm, L6: 47 mm, CH1: 27 mm, CH2: 27 mm, and CH3: 24 mm, it complies with DIN 2353 standards, making it ideal for industrial and institutional use.

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

27 mm

Specifications Ch3

24 mm

Specifications L3

14.5 mm

Specifications L4

30.5 mm

Specifications L5

31 mm

Specifications L6

47 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

20x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm
