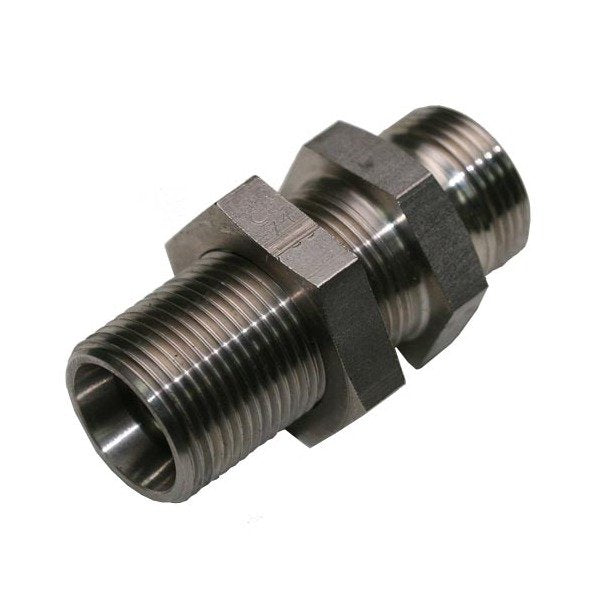

Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting
Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting
SKU:FIT-0d0437
Stainless Steel Bulkhead Union Body for 8.0mm tubes - DIN 2353 Compliant, 315 bar
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid systems with this Stainless Steel Bulkhead Union Body, designed for durability and reliable performance. With a light-duty pressure rating of 315 bar, this fitting is ideal for 8.0mm tube diameters. Meet DIN 2353 standards for quality assurance.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications L1
15 mm
Specifications L2
34.0 mm
Specifications L3
8.0 mm
Specifications L4
27 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
